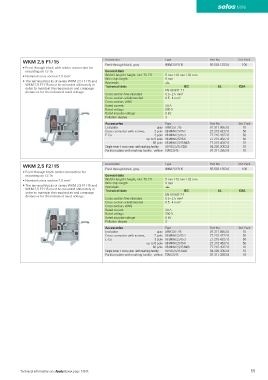

Page 55 - Wieland - Selos/Fasis

selos mini

WKM 2,5 F1 / 15 Description Type Part No. Std. Pack
Feed-through block, gray WKM 2,5 F1/15 55.503.1253.0 100
• Feed-through block with solder connection for
mounting on TS 15 General data
• Nominal cross section 2.5 mm 2 Width / length / height, incl. TS 7.5 5 mm / 32 mm / 32 mm
Wire strip length 9 mm
• The terminal blocks of series WKM 2,5 F1 / 15 and Approvals E
WKM 2,5 F2 / 15 must be mounted alternately in Technical data IEC UL CSA
order to maintain the required air and creepage EN 60 947-7-1
distances for the indicated rated voltage.
Cross section fine-stranded 0.5 – 2.5 mm 2
Cross section solid/stranded 0.5 – 4 mm 2
Cross section, AWG
Rated current 24 A
Rated voltage 500 V
Rated impulse voltage 6 kV
Pollution degree 3
Accessories Type Part No. Std. Pack
End plate gray APM 2,5 F./15 07.311.0653.0 10
Cross connector with screws, 2 pole VB WKM 2,5/15-2 Z7.215.4227.0 50
E-Cu 3 pole VB WKM 2,5/15-3 Z7.215.4327.0 50
up to 6 pole VB WKM 2,5/15-6 Z7.215.4627.0 50
60 pole VB WKM 2,5/15 M60 Z7.215.4027.0 10
Single cover f. cross conn. with marking facility AD VB 2,5/15 GELB 04.326.3053.8 10
Partition plate with marking facility yellow TSM 2,5/15 07.311.2853.8 10

WKM 2,5 F2 / 15 Description Type Part No. Std. Pack
Feed-through block, gray WKM 2,5 F2/15 55.503.1353.0 100
• Feed-through block solder connection for
mounting on TS 15 General data
• Nominal cross section 2.5 mm 2 Width / length / height, incl. TS 7.5 5 mm / 32 mm / 32 mm
Wire strip length 9 mm
• The terminal blocks of series WKM 2,5 F1 / 15 and Approvals E
WKM 2,5 F2 / 15 must be mounted alternately in Technical data IEC UL CSA
order to maintain the required air and creepage EN 60 947-7-1
distances for the indicated rated voltage.
Cross section fine-stranded 0.5 – 2.5 mm 2
Cross section solid/stranded 0.5 – 4 mm 2
Cross section, AWG
Rated current 24 A
Rated voltage 500 V
Rated impulse voltage 6 kV
Pollution degree 3
Accessories Type Part No. Std. Pack
End plate gray APM 2,5 F./15 07.311.0653.0 10
Cross connector with screws, 2 pole VB WKM 2,5/15-2 Z7.215.4227.0 50
E-Cu 3 pole VB WKM 2,5/15-3 Z7.215.4327.0 50
up to 6 pole VB WKM 2,5/15-6 Z7.215.4627.0 50
60 pole VB WKM 2,5/15 M60 Z7.215.4027.0 10
Single cover f. cross conn. with marking facility AD VB 2,5/15 GELB 04.326.3053.8 10
Partition plate with marking facility yellow TSM 2,5/15 07.311.2853.8 10

Technical information see facts & data page 146 ff. 55
