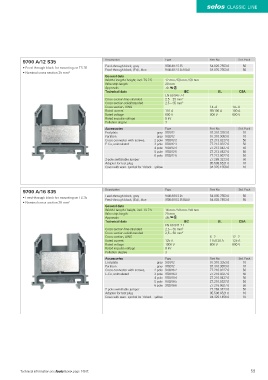

selos classic line

9700 A/12 S35 Description Type Part No. Std. Pack
Feed-through block, gray 9700 A/12 S 35 54.025.7553.0 50
• Feed-through block for mounting on TS 35
Feed-through block, (Ex)i, blue 9700 A/12 S 35 BLAU 54.025.7553.6 50
• Nominal cross section 25 mm 2
General data
Width / length / height, incl. TS 7.5 12 mm / 59 mm / 58 mm
Wire strip length 20 mm
Approvals EMD
Technical data IEC UL CSA
EN 60 947-7-1
Cross section fine-stranded 2.5 – 25 mm 2
Cross section solid/stranded 2.5 – 35 mm 2
Cross section, AWG 14 –4 14 – 4
Rated current 101 A 85/100 A 100 A
Rated voltage 800 V 600 V 600 V
Rated impulse voltage 8 kV
Pollution degree 3
Accessories Type Part No. Std. Pack
End plate gray 9701/12 07.310.3353.0 10
Partition gray 9702/12 07.310.3653.0 10
Cross connector with screws, 2 pole 9703/12-2 Z7.213.0227.0 50
E-Cu, uninsulated 3 pole 9703/12-3 Z7.213.0327.0 50
4 pole 9703/12-4 Z7.213.0427.0 50
5 pole 9703/12-5 Z7.213.0527.0 50
6 pole 9703/12-6 Z7.213.0627.0 50
2-pole switchable jumper Z7.269.3223.0 50
Adapter for test plug 05.508.6521.0 10
Cover with warn. symbol for 1 block yellow 04.325.1356.0 10

9700 A/16 S35 Description Type Part No. Std. Pack
Feed-through block, gray 9700 A/16 S 35 54.035.7553.0 50
• Feed-through block for mounting on TS 35 Feed-through block, (Ex)i, blue 9700 A/16 S 35 BLAU 54.035.7553.6 50
• Nominal cross section 35 mm 2
General data
Width / length / height, incl. TS 7.5 16 mm / 59 mm / 58 mm
Wire strip length 20 mm
Approvals EMD
Technical data IEC UL CSA
EN 60 947-7-1
Cross section fine-stranded 2,5 – 35 mm 2
Cross section solid/stranded 2,5 – 50 mm 2
Cross section, AWG 6 – 2 12 – 2
Rated current 125 A 115/130 A 125 A
Rated voltage 1000 V 600 V 600 V
Rated impulse voltage 8 kV
Pollution degree 3
Accessories Type Part No. Std. Pack
End plate gray 9701/12 07.310.3353.0 10
Partition gray 9702/12 07.310.3653.0 10
Cross connector with screws, 2 pole 9703/16-2 Z7.216.0227.0 50
E-Cu, uninsulated 3 pole 9703/16-3 Z7.216.0327.0 50
4 pole 9703/16-4 Z7.216.0427.0 50
5 pole 9703/16-5 Z7.216.0527.0 50
6 pole 9703/16-6 Z7.216.0627.0 50
2-pole switchable jumper Z7.269.3423.0 50
Adapter for test plug 05.508.6521.0 10
Cover with warn. symbol for 1 block yellow 04.325.1456.0 10
