fasis

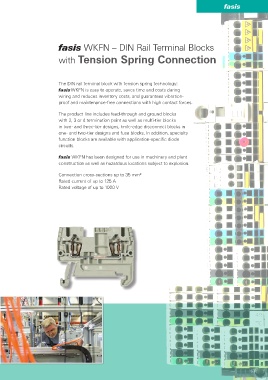

fasis WKFN – DIN Rail Terminal Blocks
with Tension Spring Connection
The DIN rail terminal block with tension spring technology:
fasis WKFN is easy to operate, saves time and costs during
wiring and reduces inventory costs, and guarantees vibration-
proof and maintenance-free connections with high contact forces.
The product line includes feed-through and ground blocks
with 2, 3 or 4 termination point as well as multi-tier blocks
in two- and three-tier designs, knife-edge disconnect blocks in
one- and two-tier designs and fuse blocks. In addition, specialty
function blocks are available with application-specific diode
circuits.
fasis WKFN has been designed for use in machinery and plant
construction as well as hazardous locations subject to explosion.
Connection cross-sections up to 35 mm²
Rated current of up to 125 A
Rated voltage of up to 1000 V
