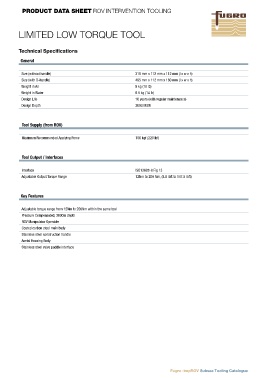

PRODUCT DATA SHEET ROV INTERVENTION TOOLING
LIMITED LOW TORQUE TOOL
Technical Specifications
General
Size (without handle) 318 mm x 112 mm x 112 mm (l x w x h)
Size (with D-handle) 495 mm x 112 mm x 160 mm (l x w x h)
Weight in Air 8 kg (18 lb)
Weight in Water 6.5 kg (14 lb)
Design Life 10 years (with regular maintenance)
Design Depth 3000 MSW
Tool Supply (from ROV)
Maximum Recommended Applying Force 100 kgf (220 lbf)
Tool Output / Interfaces
Interface ISO13628-8 Fig 13
Adjustable Output Torque Range 12Nm to 200 Nm, (8.8 lbft to 147.5 lbft)
Key Features
Adjustable torque range from 12Nm to 200Nm within the same tool
Pressure Compensated, 3000m depth
ROV Manipulator Operable
Coated carbon steel main body
Stainless steel construction handle
Acetal Housing Body
Stainless steel valve paddle interface
