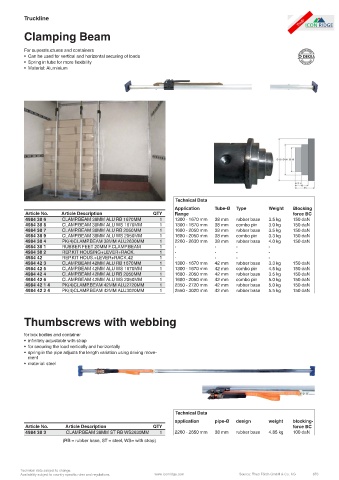

Page 870 - Icon Ridge Automotive & Truck Catalog

Truckline

Clamping Beam

For superstructures and containers
• Can be used for vertical and horizontal securing of loads
• Spring in tube for more flexibility
• Material: Aluminium

Technical Data
Application Tube-Ø Type Weight Blocking
Article No. Article Description QTY Range force BC
4984 38 6 CLAMP.BEAM 38MM ALU RB 1670MM 1 1300 - 1670 mm 38 mm rubber base 3.5 kg 150 daN
4984 38 8 CLAMP.BEAM 38MM ALU WS 1670MM 1 1300 - 1670 mm 38 mm combo pin 3.0 kg 150 daN
4984 38 7 CLAMP.BEAM 38MM ALU RB 2050MM 1 1680 - 2050 mm 38 mm rubber base 3.5 kg 150 daN
4984 38 9 CLAMP.BEAM 38MM ALU WS 2050MM 1 1680 - 2050 mm 38 mm combo pin 3.3 kg 150 daN
4984 38 4 PK(4)CLAMP.BEAM 38MM ALU2630MM 1 2260 - 2630 mm 38 mm rubber base 4.0 kg 150 daN
4984 38 1 RUBBER FEET 20MM F.CLAMP.BEAM 1 - - - -
4984 38 2 REP.KIT HOUSING+LEVER+RACK. 1 - - - -
4984 42 REP.KIT HOUS.+LEVER+RACK.42 1 - - - -
4984 42 3 CLAMP.BEAM 42MM ALU RB 1670MM 1 1300 - 1670 mm 42 mm rubber base 3.3 kg 150 daN
4984 42 5 CLAMP.BEAM 42MM ALU WS 1670MM 1 1300 - 1670 mm 42 mm combo pin 4.5 kg 150 daN
4984 42 4 CLAMP.BEAM 42MM ALU RB 2050MM 1 1680 - 2050 mm 42 mm rubber base 3.5 kg 150 daN
4984 42 6 CLAMP.BEAM 42MM ALU WS 2050MM 1 1680 - 2050 mm 42 mm combo pin 5.0 kg 150 daN
4984 42 1 4 PK(4)CLAMP.BEAM 42MM ALU2720MM 1 2350 - 2720 mm 42 mm rubber base 5.0 kg 150 daN
4984 42 2 4 PK(4)CLAMP.BEAM 42MM ALU3020MM 1 2550 - 3020 mm 42 mm rubber base 5.5 kg 150 daN

Thumbscrews with webbing

for box bodies and container
• infinitely adjustable with strap
• for securing the load vertically and horizontally
• spring in the pipe adjusts the length variation using driving move-
ment
• material: steel

Technical Data
application pipe-Ø design weight blocking-
Article No. Article Description QTY force BC
4984 38 3 CLAMP.BEAM 38MM ST RB WS2630MM 1 2260 - 2650 mm 38 mm rubber base 4.85 kg 100 daN
(RB = rubber base, ST = steel, WS= with strap)

Technical data subject to change.
