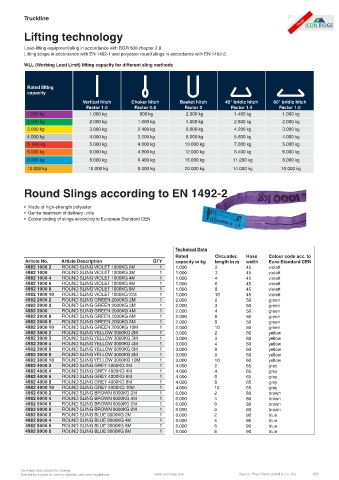

Page 873 - Icon Ridge Automotive & Truck Catalog

Truckline

Lifting technology

Load-lifting equipment/sling in accordance with BGR 500 chapter 2.8
Lifting straps in accordance with EN 1492-1 and polyester round slings in accordance with EN 1492-2.
WLL (Working Load Limit) lifting capacity for different sling methods

Rated lifting
capacity
Vertical hitch Choker hitch Basket hitch 45° bridle hitch 60° bridle hitch
Factor 1.0 Factor 0.8 Factor 2 Factor 1.4 Factor 1.0
1.000 kg 1.000 kg 800 kg 2.000 kg 1.400 kg 1.000 kg
2.000 kg 2.000 kg 1.600 kg 4.000 kg 2.800 kg 2.000 kg
3.000 kg 3.000 kg 2.400 kg 6.000 kg 4.200 kg 3.000 kg
4.000 kg 4.000 kg 3.200 kg 8.000 kg 5.600 kg 4.000 kg
5. 000 kg 5.000 kg 4.000 kg 10.000 kg 7.000 kg 5.000 kg
6.000 kg 6.000 kg 4.800 kg 12.000 kg 8.400 kg 6.000 kg
8.000 kg 8.000 kg 6.400 kg 16.000 kg 11.200 kg 8.000 kg
10.000 kg 10.000 kg 8.000 kg 20.000 kg 14.000 kg 10.000 kg

Round Slings according to EN 1492-2

• Made of high-strength polyester
• Gentle treatment of delivery units
• Colour coding of slings according to European Standard CEN

Technical Data
Rated Circumfer. Hose Colour code acc. to
Article No. Article Description QTY capacity in kg length in m width Euro-Standard CEN
4982 1000 2 ROUND SLING VIOLET 1000KG 2M 1 1.000 2 45 violett
4982 1000 ROUND SLING VIOLET 1000KG 3M 1 1.000 3 45 violett
4982 1000 4 ROUND SLING VIOLET 1000KG 4M 1 1.000 4 45 violett
4982 1000 6 ROUND SLING VIOLET 1000KG 6M 1 1.000 6 45 violett
4982 1000 8 ROUND SLING VIOLET 1000KG 8M 1 1.000 8 45 violett
4982 1000 10 ROUND SLING VIOLET 1000KG10M 1 1.000 10 45 violett
4982 2000 2 ROUND SLING GREEN 2000KG 2M 1 2.000 2 50 green
4982 2000 3 ROUND SLING GREEN 2000KG 3M 1 2.000 3 50 green
4982 2000 ROUND SLING GREEN 2000KG 4M 1 2.000 4 50 green
4982 2000 6 ROUND SLING GREEN 2000KG 6M 1 2.000 6 50 green
4982 2000 8 ROUND SLING GREEN 2000KG 8M 1 2.000 8 50 green
4982 2000 10 ROUND SLING GREEN 2000KG 10M 1 2.000 10 50 green
4982 3000 2 ROUND SLING YELLOW 3000KG 2M 1 3.000 2 60 yellow
4982 3000 3 ROUND SLING YELLOW 3000KG 3M 1 3.000 3 60 yellow
4982 3000 4 ROUND SLING YELLOW 3000KG 4M 1 3.000 4 60 yellow
4982 3000 6 ROUND SLING YELLOW 3000KG 6M 1 3.000 6 60 yellow
4982 3000 8 ROUND SLING YELLOW 3000KG 8M 1 3.000 8 60 yellow
4982 3000 10 ROUND SLING YELLOW 3000KG 10M 1 3.000 10 60 yellow
4982 4000 2 ROUND SLING GREY 4000KG 2M 1 4.000 2 65 grey
4982 4000 4 ROUND SLING GREY 4000KG 4M 1 4.000 4 65 grey
4982 4000 6 ROUND SLING GREY 4000KG 6M 1 4.000 6 65 grey
4982 4000 8 ROUND SLING GREY 4000KG 8M 1 4.000 8 65 grey
4982 4000 10 ROUND SLING GREY 4000KG 10M 1 4.000 10 65 grey
4982 6000 2 ROUND SLING BROWN 6000KG 2M 1 6.000 2 80 brown
4982 6000 4 ROUND SLING BROWN 6000KG 4M 1 6.000 4 80 brown
4982 6000 6 ROUND SLING BROWN 6000KG 6M 1 6.000 6 80 brown
4982 6000 8 ROUND SLING BROWN 6000KG 8M 1 6.000 8 80 brown
4982 8000 2 ROUND SLING BLUE 8000KG 2M 1 8.000 2 90 blue
4982 8000 4 ROUND SLING BLUE 8000KG 4M 1 8.000 4 90 blue
4982 8000 6 ROUND SLING BLUE 8000KG 6M 1 8.000 6 90 blue
4982 8000 8 ROUND SLING BLUE 8000KG 8M 1 8.000 8 90 blue

Technical data subject to change.
Availability subject to country specific rules and regulations. www.iconridge.com Source: Theo Förch GmbH & Co. KG 873
