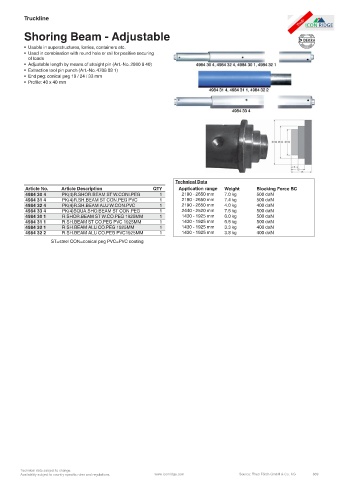

Page 869 - Icon Ridge Automotive & Truck Catalog

Truckline

Shoring Beam - Adjustable

• Usable in superstructures, lorries, containers etc.
• Used in combination with round hole or rail for positive securing
of loads
• Adjustable length by means of straight pin (Art.-No. 2860 8 40)
• Extraction tool pin punch (Art.-No. 4708 08 1)
• End peg: conical peg 19 / 24 / 33 mm
• Profile: 40 x 40 mm

Technical Data
Article No. Article Description QTY Application range Weight Blocking Force BC
4984 30 4 PK(4)R.SHOR.BEAM ST W.CONI.PEG 1 2190 - 2650 mm 7.0 kg 500 daN
4984 31 4 PK(4)R.SH.BEAM ST CON.PEG PVC 1 2190 - 2650 mm 7.4 kg 500 daN
4984 32 4 PK(4)R.SH.BEAM ALU W.CON.PVC 1 2190 - 2650 mm 4.0 kg 400 daN
4984 33 4 PK(4)SQUA.SHO.BEAM ST CON.PEG 1 2440 - 2520 mm 7.5 kg 500 daN
4984 30 1 R.SHOR.BEAM ST W.CO.PEG 1925MM 1 1430 - 1925 mm 6.0 kg 500 daN
4984 31 1 R.SH.BEAM ST CO.PEG PVC 1925MM 1 1430 - 1925 mm 6.5 kg 500 daN
4984 32 1 R.SH.BEAM ALU CO.PEG 1925MM 1 1430 - 1925 mm 3.3 kg 400 daN
4984 32 2 R.SH.BEAM ALU CO.PEG PVC1925MM 1 1430 - 1925 mm 3.8 kg 400 daN
ST=steel CON=conical peg PVC=PVC coating

Technical data subject to change.
