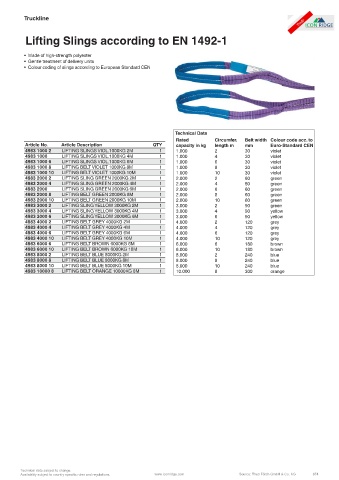

Page 874 - Icon Ridge Automotive & Truck Catalog

Truckline

Lifting Slings according to EN 1492-1

• Made of high-strength polyester
• Gentle treatment of delivery units
• Colour coding of slings according to European Standard CEN

Technical Data
Rated Circumfer. Belt width Colour code acc. to
Article No. Article Description QTY capacity in kg length m mm Euro-Standard CEN
4983 1000 2 LIFTING SLINGS VIOL.1000KG 2M 1 1.000 2 30 violet
4983 1000 LIFTING SLINGS VIOL.1000KG 4M 1 1.000 4 30 violet
4983 1000 6 LIFTING SLINGS VIOL.1000KG 6M 1 1.000 6 30 violet
4983 1000 8 LIFTING BELT VIOLET 1000KG 8M 1 1.000 8 30 violet
4983 1000 10 LIFTING BELT VIOLET 1000KG 10M 1 1.000 10 30 violet
4983 2000 2 LIFTING SLING GREEN 2000KG 2M 1 2.000 2 60 green
4983 2000 4 LIFTING SLING GREEN 2000KG 4M 1 2.000 4 60 green
4983 2000 LIFTING SLING GREEN 2000KG 6M 1 2.000 6 60 green
4983 2000 8 LIFTING BELT GREEN 2000KG 8M 1 2.000 8 60 green
4983 2000 10 LIFTING BELT GREEN 2000KG 10M 1 2.000 10 60 green
4983 3000 2 LIFTING SLING YELLOW 3000KG 2M 1 3.000 2 90 green
4983 3000 4 LIFTING SLING YELLOW 3000KG 4M 1 3.000 4 90 yellow
4983 3000 6 LIFTING SLING YELLOW 3000KG 6M 1 3.000 6 90 yellow
4983 4000 2 LIFTING BELT GREY 4000KG 2M 1 4.000 2 120 grey
4983 4000 4 LIFTING BELT GREY 4000KG 4M 1 4.000 4 120 grey
4983 4000 6 LIFTING BELT GREY 4000KG 6M 1 4.000 6 120 grey
4983 4000 10 LIFTING BELT GREY 4000KG 10M 1 4.000 10 120 grey
4983 6000 6 LIFTING BELT BROWN 6000KG 6M 1 6.000 6 180 brown
4983 6000 10 LIFTING BELT BROWN 6000KG 10M 1 6.000 10 180 brown
4983 8000 2 LIFTING BELT BLUE 8000KG 2M 1 8.000 2 240 blue
4983 8000 8 LIFTING BELT BLUE 8000KG 8M 1 8.000 8 240 blue
4983 8000 10 LIFTING BELT BLUE 8000KG 10M 1 8.000 10 240 blue
4983 10000 8 LIFTING BELT ORANGE 10000KG 8M 1 10.000 8 300 orange

Technical data subject to change.
Availability subject to country specific rules and regulations. www.iconridge.com Source: Theo Förch GmbH & Co. KG 874
