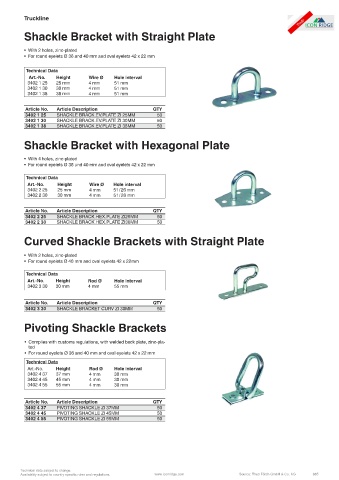

Page 885 - Icon Ridge Automotive & Truck Catalog

Truckline

Shackle Bracket with Straight Plate

• With 2 holes, zinc-plated
• For round eyelets Ø 36 and 40 mm and oval eyelets 42 x 22 mm

Technical Data
Art.-No. Height Wire Ø Hole interval
3402 1 25 25 mm 4 mm 51 mm
3402 1 30 30 mm 4 mm 51 mm
3402 1 38 38 mm 4 mm 51 mm

Article No. Article Description QTY
3402 1 25 SHACKLE BRACK.EV.PLATE ZI 25MM 50
3402 1 30 SHACKLE BRACK.EV.PLATE ZI 30MM 50
3402 1 38 SHACKLE BRACK.EV.PLATE ZI 38MM 50

Shackle Bracket with Hexagonal Plate

• With 4 holes, zinc-plated
• For round eyelets Ø 36 und 40 mm and oval eyelets 42 x 22 mm

Technical Data
Art.-No. Height Wire Ø Hole interval
3402 2 25 25 mm 4 mm 51 / 26 mm
3402 2 30 30 mm 4 mm 51 / 26 mm

Article No. Article Description QTY
3402 2 25 SHACKLE BRACK.HEX.PLATE ZI25MM 50
3402 2 30 SHACKLE BRACK.HEX.PLATE ZI30MM 50

Curved Shackle Brackets with Straight Plate

• With 2 holes, zinc-plated
• For round eyelets Ø 40 mm and oval eyelets 42 x 22mm

Technical Data
Art.-No. Height Rod Ø Hole interval
3402 3 30 30 mm 4 mm 55 mm

Article No. Article Description QTY
3402 3 30 SHACKLE BRACKET CURV ZI 30MM 50

Pivoting Shackle Brackets

• Complies with customs regulations, with welded back plate, zinc-pla-
ted
• For round eyelets Ø 36 and 40 mm and oval eyelets 42 x 22 mm
Technical Data
Art.-No. Height Rod Ø Hole interval
3402 4 37 37 mm 4 mm 30 mm
3402 4 45 45 mm 4 mm 30 mm
3402 4 55 55 mm 4 mm 30 mm

Article No. Article Description QTY
3402 4 37 PIVOTING SHACKLE ZI 37MM 50
3402 4 45 PIVOTING SHACKLE ZI 45MM 50
3402 4 55 PIVOTING SHACKLE ZI 55MM 50

Technical data subject to change.
Availability subject to country specific rules and regulations. www.iconridge.com Source: Theo Förch GmbH & Co. KG 885
