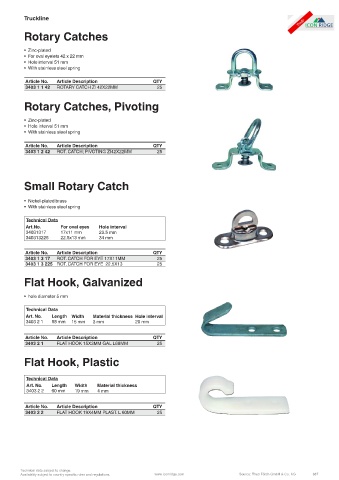

Page 887 - Icon Ridge Automotive & Truck Catalog

Truckline

Rotary Catches

• Zinc-plated
• For oval eyelets 42 x 22 mm
• Hole interval 51 mm
• With stainless steel spring

Article No. Article Description QTY
3403 1 1 42 ROTARY CATCH ZI 42X22MM 25

Rotary Catches, Pivoting

• Zinc-plated
• Hole interval 51 mm
• With stainless steel spring

Article No. Article Description QTY
3403 1 2 42 ROT. CATCH; PIVOTING ZI42X22MM 25

Small Rotary Catch

• Nickel-plated brass
• With stainless steel spring

Technical Data
Art.No. For oval eyes Hole interval
34031317 17x11 mm 23.5 mm
340313225 22.5x13 mm 34 mm

Article No. Article Description QTY
3403 1 3 17 ROT. CATCH FOR EYE 17X11MM 25
3403 1 3 225 ROT. CATCH FOR EYE 22.5X13 25

Flat Hook, Galvanized

• hole diameter 5 mm

Technical Data
Art. No. Length Width Material thickness Hole interval
3403 2 1 68 mm 15 mm 3 mm 20 mm

Article No. Article Description QTY
3403 2 1 FLAT HOOK 15X3MM GAL L68MM 25

Flat Hook, Plastic

Technical Data
Art. No. Length Width Material thickness
3403 2 2 60 mm 19 mm 4 mm

Article No. Article Description QTY
3403 2 2 FLAT HOOK 19X4MM PLAST. L 60MM 25

Technical data subject to change.
Availability subject to country specific rules and regulations. www.iconridge.com Source: Theo Förch GmbH & Co. KG 887
