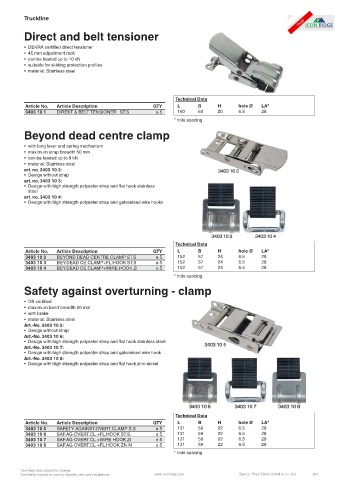

Page 891 - Icon Ridge Automotive & Truck Catalog

Truckline

Direct and belt tensioner

• DEKRA certified direct tensioner
• 45 mm adjustment rack
• can be loaded up to 10 kN
• suitable for skirting protection profiles
• material: Stainless steel

Technical Data
Article No. Article Description QTY L B H hole Ø LA*
3403 10 1 DIREKT & BELT TENSIONER ST.S e 5 160 60 20 6.5 28
* hole spacing
Beyond dead centre clamp

• with long lever and spring mechanism
• maximum strap breadth 50 mm
• can be loaded up to 8 kN
• material: Stainless steel
art. no. 3403 10 2:
• Design without strap
art. no. 3403 10 3:
• Design with high strength polyester strap and flat hook stainless
steel
art. no. 3403 10 4:
• Design with high strength polyester strap and galvanised wire hooks

Technical Data
Article No. Article Description QTY L B H hole Ø LA*
3403 10 2 BEYOND DEAD CENTRE CLAMP ST.S e 5 152 57 24 6.5 28
3403 10 3 BEY.DEAD CE.CLAMP+FL.HOOK ST.S e 5 152 57 24 6.5 28
3403 10 4 BEY.DEAD CE.CLAMP+WIRE.HOOK ZI e 5 152 57 24 6.5 28
* hole spacing
Safety against overturning - clamp

• DB certified
• maximum band breadth 50 mm
• with brake
• material: Stainless steel
Art.-No. 3403 10 5:
• Design without strap
Art.-No. 3403 10 6:
• Design with high strength polyester strap and flat hook stainless steel
Art.-No. 3403 10 7:
• Design with high strength polyester strap and galvanised wire hook
Art.-No. 3403 10 8:
• Design with high strength polyester strap and flat hook zinc-nickel

Technical Data
Article No. Article Description QTY L B H hole Ø LA*
3403 10 5 SAFETY AGAINST-OVERT.CLAMP S.S e 5 131 59 22 6.5 28
3403 10 6 SAF.AG-OVERT.CL.+FL.HOOK ST.S. e 5 131 59 22 6.5 28
3403 10 7 SAF.AG-OVERT.CL.+WIRE HOOK ZI e 5 131 59 22 6.5 28
3403 10 8 SAF.AG-OVERT.CL.+FL.HOOK ZN-N e 5 131 59 22 6.5 28
* hole spacing

Technical data subject to change.
