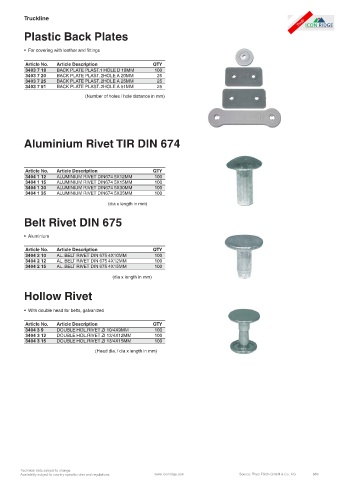

Page 889 - Icon Ridge Automotive & Truck Catalog

Truckline

Plastic Back Plates

• For covering with leather and fittings

Article No. Article Description QTY
3403 7 18 BACK PLATE PLAST.1 HOLE D 18MM 100
3403 7 20 BACK PLATE PLAST. 2HOLE A 20MM 25
3403 7 25 BACK PLATE PLAST. 2HOLE A 25MM 25
3403 7 51 BACK PLATE PLAST. 2HOLE A 51MM 25
(Number of holes / hole distance in mm)

Aluminium Rivet TIR DIN 674

Article No. Article Description QTY
3404 1 12 ALUMINIUM RIVET DIN674 5X12MM 100
3404 1 15 ALUMINIUM RIVET DIN674 5X15MM 100
3404 1 30 ALUMINIUM RIVET DIN674 5X30MM 100
3404 1 35 ALUMINIUM RIVET DIN674 5X35MM 100
(dia x length in mm)

Belt Rivet DIN 675

• Aluminium

Article No. Article Description QTY
3404 2 10 AL. BELT RIVET DIN 675 4X10MM 100
3404 2 12 AL. BELT RIVET DIN 675 4X12MM 100
3404 2 15 AL. BELT RIVET DIN 675 4X15MM 100
(dia x length in mm)

Hollow Rivet

• With double head for belts, galvanized

Article No. Article Description QTY
3404 3 9 DOUBLE HOL.RIVET ZI 10/4X9MM 100
3404 3 12 DOUBLE HOL.RIVET ZI 13/4X12MM 100
3404 3 15 DOUBLE HOL.RIVET ZI 13/4X15MM 100

(Head dia. / dia x length in mm)

Technical data subject to change.
Availability subject to country specific rules and regulations. www.iconridge.com Source: Theo Förch GmbH & Co. KG 889
