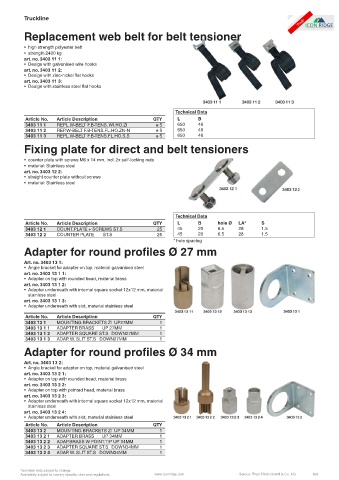

Page 892 - Icon Ridge Automotive & Truck Catalog

Truckline

Replacement web belt for belt tensioner

• high strength polyester belt
• strength 2400 kg
art. no. 3403 11 1:
• Design with galvanised wire hooks
art. no. 3403 11 2:
• Design with zinc-nickel flat hooks
art. no. 3403 11 3:
• Design with stainless steel flat hooks

Technical Data
Article No. Article Description QTY L B
3403 11 1 REPL.W-BELT F.B-TENS. WI.HO.ZI e 5 650 48
3403 11 2 REP.W-BELT F.B-TENS.FL.HO.ZN-N e 5 650 48
3403 11 3 REPL.W-BELT F.B-TENS.FL.HO.S.S e 5 650 48
Fixing plate for direct and belt tensioners

• counter plate with screws M6 x 14 mm, incl. 2x self-locking nuts
• material: Stainless steel
art. no. 3403 12 2:
• straight counter plate without screws
• material: Stainless steel

Technical Data
Article No. Article Description QTY L B hole Ø LA* S
3403 12 1 COUNT.PLATE + SCREWS ST.S 25 45 20 6.5 28 1.5
3403 12 2 COUNTER PLATE ST.S 25 45 20 6.5 28 1.5
* hole spacing
Adapter for round profiles Ø 27 mm

Art. no. 3403 13 1:
• Angle bracket for adapter on top, material galvanised steel
art. no. 3403 13 1 1:
• Adapter on top with rounded head, material brass
art. no. 3403 13 1 2:
• Adapter underneath with internal square socket 12x12 mm, material
stainless steel
art. no. 3403 13 1 3:
• Adapter underneath with slot, material stainless steel

Article No. Article Description QTY
3403 13 1 MOUNTING BRACKETS ZI UP27MM 1
3403 13 1 1 ADAPTER BRASS UP 27MM 1
3403 13 1 2 ADAPTER SQUARE ST.S. DOWN27MM 1
3403 13 1 3 ADAP. W. SLIT ST.S DOWN27MM 1
Adapter for round profiles Ø 34 mm

Art. no. 3403 13 2:
• Angle bracket for adapter on top, material galvanised steel
art. no. 3403 13 2 1:
• Adapter on top with rounded head, material brass
art. no. 3403 13 2 2:
• Adapter on top with pointed head, material brass
art. no. 3403 13 2 3:
• Adapter underneath with internal square socket 12x12 mm, material
stainless steel
art. no. 3403 13 2 4:
• Adapter underneath with slot, material stainless steel
Article No. Article Description QTY
3403 13 2 MOUNTING BRACKETS ZI UP 34MM 1
3403 13 2 1 ADAPTER BRASS UP 34MM 1
3403 13 2 2 ADAP.BRASS W.POINT.TIP UP 34MM 1
3403 13 2 3 ADAPTER SQUARE ST.S. DOWN34MM 1
3403 13 2 4 ADAP. W. SLIT ST.S DOWN34MM 1

Technical data subject to change.
