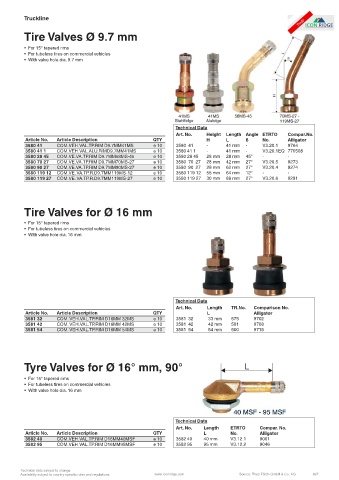

Page 897 - Icon Ridge Automotive & Truck Catalog

Truckline

Tire Valves Ø 9.7 mm

• For 15° tapered rims
• For tubeless tires on commercial vehicles
• With valve hole dia. 9.7 mm

Technical Data
Art. No. Height Length Angle ETRTO Compar.No.
Article No. Article Description QTY H L ß No. Alligator
3580 41 COM.VEH.VAL.TP.RIM D9.7MM41MS e 10 3580 41 - 41 mm - V3.20.1 9764
3580 41 1 COM.VEH.VAL.ALU.RIMD9.7MM41MS e 10 3580 41 1 - 41 mm - V3.20.1EQ 770508
3580 28 45 COM.VE.VA.TP.RIM D9.7MM58MS-45 e 10 3580 28 45 28 mm 28 mm 45° - -
3580 70 27 COM.VE.VA.TP.RIM D9.7MM70MS-27 e 10 3580 70 27 28 mm 42 mm 27° V3.20.5 9273
3580 90 27 COM.VE.VA.TP.RIM D9.7MM90MS-27 e 10 3580 90 27 28 mm 62 mm 27° V3.20.4 9274
3580 119 12 COM.VE. VA.TP.R.D9.7MM119MS-12 e 10 3580 119 12 55 mm 64 mm 12° - -
3580 119 27 COM.VE. VA.TP.R.D9.7MM119MS-27 e 10 3580 119 27 30 mm 89 mm 27° V3.20.6 9291

Tire Valves for Ø 16 mm

• For 15° tapered rims
• For tubeless tires on commercial vehicles
• With valve hole dia. 16 mm

Technical Data
Art. No. Length TR.No. Comparison No.
Article No. Article Description QTY L Alligator
3581 32 COM. VEH.VAL.TP.RIM D16MM 32MS e 10 3581 32 33 mm 575 9702
3581 42 COM. VEH.VAL.TP.RIM D16MM 42MS e 10 3581 42 42 mm 501 9708
3581 54 COM. VEH.VAL.TP.RIM D16MM 54MS e 10 3581 54 54 mm 500 9715

Tyre Valves for Ø 16° mm, 90°

• For 15° tapered rims
• For tubeless tires on commercial vehicles
• With valve hole dia. 16 mm

Technical Data
Art. No. Length ETRTO Compar. No.
Article No. Article Description QTY L No. Alligator
3582 40 COM.VEH.VAL.TP.RIM D16MM40MSF e 10 3582 40 40 mm V3.12.1 9001
3582 95 COM.VEH.VAL.TP.RIM D16MM95MSF e 10 3582 95 95 mm V3.12.2 9046

Technical data subject to change.
Availability subject to country specific rules and regulations. www.iconridge.com Source: Theo Förch GmbH & Co. KG 897
