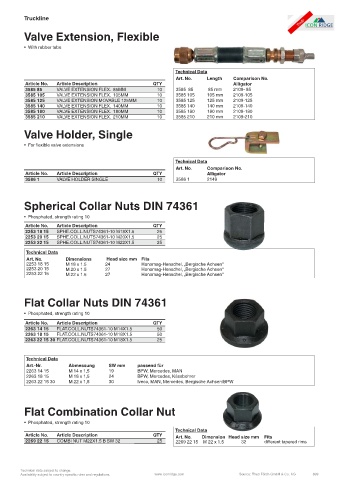

Page 899 - Icon Ridge Automotive & Truck Catalog

Truckline

Valve Extension, Flexible

• With rubber tube

Technical Data
Art. No. Length Comparison No.
Article No. Article Description QTY Alligator
3585 85 VALVE EXTENSION FLEX. 85MM 10 3585 85 85 mm 2109- 85
3585 105 VALVE EXTENSION FLEX. 105MM 10 3585 105 105 mm 2109-105
3585 125 VALVE EXTENSION MOVABLE 125MM 10 3585 125 125 mm 2109-125
3585 140 VALVE EXTENSION FLEX. 140MM 10 3585 140 140 mm 2109-140
3585 180 VALVE EXTENSION FLEX. 180MM 10 3585 180 180 mm 2109-180
3585 210 VALVE EXTENSION FLEX. 210MM 10 3585 210 210 mm 2109-210

Valve Holder, Single

• For flexible valve extensions

Technical Data
Art. No. Comparison No.
Article No. Article Description QTY Alligator
3586 1 VALVE HOLDER SINGLE 10 3586 1 2149

Spherical Collar Nuts DIN 74361

• Phosphated, strength rating 10
Article No. Article Description QTY
2253 18 15 SPHE.COLL.NUTS74361-10 M18X1.5 25
2253 20 15 SPHE.COLL.NUTS74361-10 M20X1.5 25
2253 22 15 SPHE.COLL.NUTS74361-10 M22X1.5 25
Technical Data
Art. No. Dimensions Head size mm Fits
2253 18 15 M 18 x 1.5 24 Hanomag-Henschel, „Bergische Achsen“
2253 20 15 M 20 x 1.5 27 Hanomag-Henschel, „Bergische Achsen“
2253 22 15 M 22 x 1.5 27 Hanomag-Henschel, „Bergische Achsen“

Flat Collar Nuts DIN 74361

• Phosphated, strength rating 10
Article No. Article Description QTY
2263 14 15 FLAT.COLL.NUTS74361-10 M14X1.5 50
2263 18 15 FLAT.COLL.NUTS74361-10 M18X1.5 50
2263 22 15 30 FLAT.COLL.NUTS74361-10 M18X1.5 25

Technical Data
Art.-Nr. Abmessung SW mm passend für
2263 14 15 M 14 x 1,5 19 BPW, Mercedes, MAN
2263 18 15 M 18 x 1,5 24 BPW, Mercedes, Kässbohrer
2263 22 15 30 M 22 x 1,5 30 Iveco, MAN, Mercedes, Bergische Achsen/BPW

Flat Combination Collar Nut

• Phosphated, strength rating 10
Technical Data
Article No. Article Description QTY Art. No. Dimension Head size mm Fits
2269 22 15 COMBI NUT M22X1.5 B SW 32 25 2269 22 15 M 22 x 1.5 32 different tapered rims

Technical data subject to change.
Availability subject to country specific rules and regulations. www.iconridge.com Source: Theo Förch GmbH & Co. KG 899
