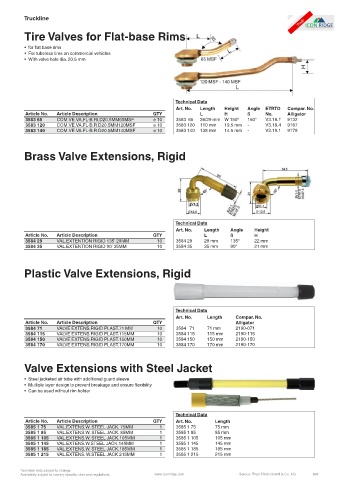

Page 898 - Icon Ridge Automotive & Truck Catalog

Truckline

Tire Valves for Flat-base Rims

• for flat base rims
• For tubeless tires on commercial vehicles
• With valve hole dia. 20.5 mm

Technical Data
Art. No. Length Height Angle ETRTO Compar. No.
Article No. Article Description QTY L H ß No. Alligator
3583 65 COM.VE.VA.FL-B.RI.D20.5MM65MSF e 10 3583 65 36/29 mm W 150° 150° V3.16.1 9132
3583 120 COM.VE.VA.FL-B.R.D20.5MM120MSF e 10 3583 120 110 mm 19.5 mm - V3.18.4 9167
3583 140 COM.VE.VA.FL-B.R.D20.5MM140MSF e 10 3583 140 138 mm 14.5 mm - V3.19.1 9179

Brass Valve Extensions, Rigid

Technical Data
Art. No. Length Angle Height
Article No. Article Description QTY L ß H
3584 29 VAL.EXTENTION RIGID 135' 29MM 10 3584 29 29 mm 135° 22 mm
3584 35 VAL.EXTENTION RIGID 90' 35MM 10 3584 35 35 mm 90° 21 mm

Plastic Valve Extensions, Rigid

Technical Data
Art. No. Length Compar. No.
Article No. Article Description QTY Alligator
3584 71 VALVE EXTENS.RIGID PLAST.71 MM 10 3584 71 71 mm 2190-071
3584 115 VALVE EXTENS.RIGID PLAST.115MM 10 3584 115 115 mm 2190-115
3584 150 VALVE EXTENS.RIGID PLAST.150MM 10 3584 150 150 mm 2190-150
3584 170 VALVE EXTENS.RIGID PLAST.170MM 10 3584 170 170 mm 2190-170

Valve Extensions with Steel Jacket

• Steel jacketed air tube with additional guard sleeve
• Multiple layer design to prevent breakage and ensure flexibility
• Can be used without rim holder

Technical Data
Article No. Article Description QTY Art. No. Length
3585 1 75 VAL.EXTENS.W. STEEL JACK. 75MM 1 3585 1 75 75 mm
3585 1 85 VAL.EXTENS.W. STEEL JACK. 85MM 1 3585 1 85 85 mm
3585 1 105 VAL.EXTENS.W. STEEL JACK.105MM 1 3585 1 105 105 mm
3585 1 145 VAL.EXTENS.W.STEEL JACK.145MM 1 3585 1 145 145 mm
3585 1 185 VAL.EXTENS.W. STEEL JACK.185MM 1 3585 1 185 185 mm
3585 1 215 VAL.EXTENS. W.STEEL JACK.215MM 1 3585 1 215 215 mm

Technical data subject to change.
