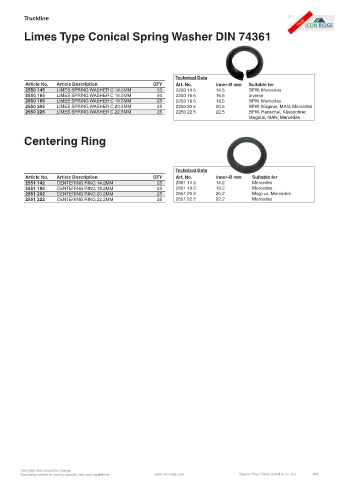

Page 900 - Icon Ridge Automotive & Truck Catalog
P. 900
Truckline
Limes Type Conical Spring Washer DIN 74361
Technical Data
Article No. Article Description QTY Art. No. Inner-Ø mm Suitable for
2550 145 LIMES SPRING WASHER C 14.5MM 50 2250 14 5 14.5 BPW, Mercedes
2550 165 LIMES SPRING WASHER C 16.5MM 50 2250 16 5 16.5 diverse
2550 185 LIMES SPRING WASHER C 18.5MM 25 2250 18 5 18.5 BPW, Mercedes
2550 205 LIMES SPRING WASHER C 20.5MM 25 2250 20 5 20.5 BPW, Magirus, MAN, Mercedes
2550 225 LIMES SPRING WASHER C 22.5MM 25 2250 22 5 22.5 BPW, Henschel, Kässbohrer,
Magirus, MAN, Mercedes
Centering Ring
Technical Data
Article No. Article Description QTY Art. No. Inner-Ø mm Suitable for
2551 142 CENTERING RING 14.2MM 25 2551 14 2 14.2 Mercedes
2551 182 CENTERING RING 18.2MM 25 2551 18 2 18.2 Mercedes
2551 202 CENTERING RING 20.2MM 25 2551 20 2 20.2 Magirus, Mercedes
2551 222 CENTERING RING 22.2MM 25 2551 22 2 22.2 Mercedes
Technical data subject to change.
Availability subject to country specific rules and regulations. www.iconridge.com Source: Theo Förch GmbH & Co. KG 900
