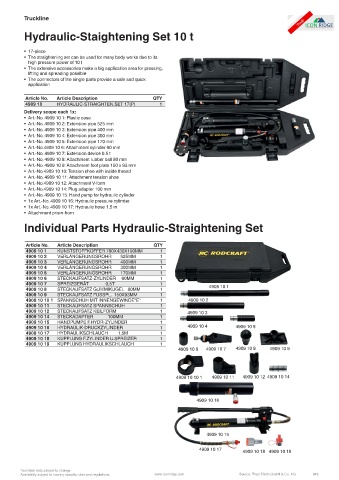

Page 949 - Icon Ridge Automotive & Truck Catalog

Truckline

Hydraulic-Staightening Set 10 t

• 17-piece
• The straightening set can be used for many body works due to its
high pressure power of 10 t
• The extensive accessories make a big application area for pressing,
lifting and spreading possible
• The connectors of the single parts provide a safe and quick
application

Article No. Article Description QTY
4909 10 HYDRAULIC-STRAIGHTEN.SET 17(P) 1
Delivery scope each 1x:
• Art.-No. 4909 10 1: Plastic case
• Art.-No. 4909 10 2: Extension pipe 525 mm
• Art.-No. 4909 10 3: Extension pipe 400 mm
• Art.-No. 4909 10 4: Extension pipe 300 mm
• Art.-No. 4909 10 5: Extension pipe 170 mm
• Art.-No.4909 10 6: Attachment cylinder 60 mm
• Art.-No. 4909 10 7: Extension device 0.5 t
• Art.-No. 4909 10 8: Attachment rubber ball 80 mm
• Art.-No. 4909 10 9: Attachment foot plate 150 x 93 mm
• Art.-No.4909 10 10: Tension shoe with inside thread
• Art.-No. 4909 10 11: Attachment tension shoe
• Art.-No.4909 10 12: Attachment V-form
• Art.-No.4909 10 14: Plug adapter 100 mm
• Art.-No. 4909 10 15: Hand pump for hydraulic cylinder
• 1x Art.-No. 4909 10 16: Hydraulic pressure cylinder
• 1x Art.-No. 4909 10 17: Hydraulic hose 1.5 m
• Attachment prism-from

Individual Parts Hydraulic-Straightening Set

Article No. Article Description QTY
4909 10 1 KUNSTSTOFFKOFFER 780X430X190MM 1
4909 10 2 VERLÄNGERUNGSROHR 525MM 1
4909 10 3 VERLÄNGERUNGSROHR 400MM 1
4909 10 4 VERLÄNGERUNGSROHR 300MM 1
4909 10 5 VERLÄNGERUNGSROHR 170MM 1
4909 10 6 STECKAUFSATZ-ZYLINDER 60MM 1
4909 10 7 SPREIZGERÄT 0,5T 1 4909 10 1
4909 10 8 STECKAUFSATZ GUMMIKUGEL 80MM 1
4909 10 9 STECKAUFSATZ FUSSPL. 150X93MM 1
4909 10 10 1 SPANNSCHUH MIT INNENGEWINDE"E" 1 4909 10 2
4909 10 11 STECKAUFSATZ SPANNSCHUH 1
4909 10 12 STECKAUFSATZ KEILFORM 1 4909 10 3
4909 10 14 STECKADAPTER 100MM 1
4909 10 15 HANDPUMPE F.HYDR-ZYLINDER 1
4909 10 16 HYDRAULIK-DRUCKZYLINDER 1 4909 10 4 4909 10 5
4909 10 17 HYDRAULIKSCHLAUCH 1,5M 1
4909 10 18 KUPPLUNG F.ZYLINDER U.SPREIZER 1
4909 10 19 KUPPLUNG HYDRAULIKSCHLAUCH 1
4909 10 6 4909 10 7 4909 10 8 4909 10 9

4909 10 10 1 4909 10 11 4909 10 12 4909 10 14

4909 10 16

4909 10 15

4909 10 17
4909 10 18 4909 10 19

Technical data subject to change.
