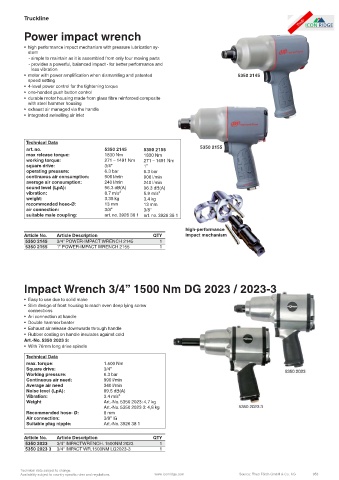

Page 953 - Icon Ridge Automotive & Truck Catalog

Truckline

Power impact wrench

• high performance impact mechanism with pressure lubrication sy-
stem
- simple to maintain as it is assembled from only four moving parts
- provides a powerful, balanced impact - for better performance and
less vibration
• motor with power amplification when dismantling and patented 5350 2145
speed setting
• 4-level power control for the tightening torque
• one-handed push button control
• durable motor housing made from glass fibre reinforced composite
with steel hammer housing
• exhaust air managed via the handle
• integrated swivelling air inlet

Technical Data
art. no. 5350 2145 5350 2155 5350 2155
max release torque: 1830 Nm 1830 Nm
working torque: 271 – 1491 Nm 271 – 1491 Nm
square drive: 3/4” 1”
operating pressure: 6.3 bar 6.3 bar
continuous air consumption: 906 l/min 906 l/min
average air consumption: 240 l/min 240 l/min
sound level (LpA): 96.3 dB(A) 96.3 dB(A)
vibration: 8.7 m/s² 5.9 m/s²
weight: 3.35 kg 3.4 kg
recommended hose-Ø: 13 mm 13 mm
air connection: 3/8” 3/8”
suitable male coupling: art. no. 3926 38 1 art. no. 3926 38 1

high-performance
Article No. Article Description QTY impact mechanism
5350 2145 3/4" POWER-IMPACT WRENCH 2145 1
5350 2155 1" POWER-IMPACT WRENCH 2155 1

Impact Wrench 3/4” 1500 Nm DG 2023 / 2023-3

• Easy to use due to solid make
• Slim design of front housing to reach even deep lying screw
connections
• Ari connection at handle
• Double hammer beater
• Exhaust air release downwards through handle
• Rubber coating on handle insulates against cold
Art.-No. 5350 2023 3:
• With 76mm long drive spindle
Technical Data
max. torque: 1.500 Nm
Square drive: 3/4”
Working pressure: 6.3 bar
Continuous air need: 990 l/min
Average air need 340 l/min
Noise level (LpA): 89.5 dB(A)
Vibration: 3.4 m/s²
Weight Art.-No. 5350 2023: 4,7 kg
Art.-No. 5350 2023 3: 4,8 kg
Recommended hose- Ø: 8 mm
Air connection: 3/8” IG
Suitable plug nipple: Art.-No. 3926 38 1

Article No. Article Description QTY
5350 2023 3/4" IMPACTWRENCH. 1500NM 2023 1
5350 2023 3 3/4" IMPACT WR.1500NM LG2023-3 1

Technical data subject to change.
