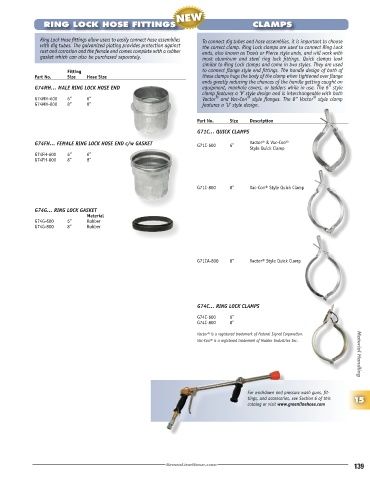

Page 141 - 2022FittingsCatalog

RING LOCK HOSE FITTINGS CLAMPS

Ring Lock Hose fittings allow users to easily connect hose assemblies To connect dig tubes and hose assemblies, it is important to choose
with dig tubes. The galvanized plating provides protection against the correct clamp. Ring Lock clamps are used to connect Ring Lock
rust and corrosion and the female end comes complete with a rubber ends, also known as Travis or Pierce style ends, and will work with
gasket which can also be purchased separately. most aluminum and steel ring lock fittings. Quick clamps look
similar to Ring Lock clamps and come in two styles. They are used
Fitting to connect flange style end fittings. The handle design of both of
Part No. Size Hose Size these clamps hugs the body of the clamp when tightened over flange
ends greatly reducing the chances of the handle getting caught on
G74MH… MALE RING LOCK HOSE END equipment, manhole covers, or ladders while in use. The 6” style
clamp features a ‘V’ style design and is interchangeable with both
G74MH-600 6” 6” Vactor ® and Vac-Con ® style flanges. The 8” Vactor ® style clamp
G74MH-800 8” 8” features a ‘U’ style design.

Part No. Size Description
G71C… QUICK CLAMPS

G74FH… FEMALE RING LOCK HOSE END c/w GASKET G71C-600 6” Vactor® & Vac-Con®
Style Quick Clamp
G74FH-600 6” 6”
G74FH-800 8” 8”

G71C-800 8” Vac-Con® Style Quick Clamp

G74G… RING LOCK GASKET
Material
G74G-600 6” Rubber
G74G-800 8” Rubber

G71CA-800 8” Vactor® Style Quick Clamp

G74C… RING LOCK CLAMPS

G74C-600 6”
G74C-800 8”
Vactor® is a registered trademark of Federal Signal Corporation.
Vac-Con® is a registered trademark of Holden Industries Inc. Material Handling

For washdown and pressure wash guns, fit-
tings, and accessories, see Section 6 of this 15
catalog or visit www.greenlinehose.com
