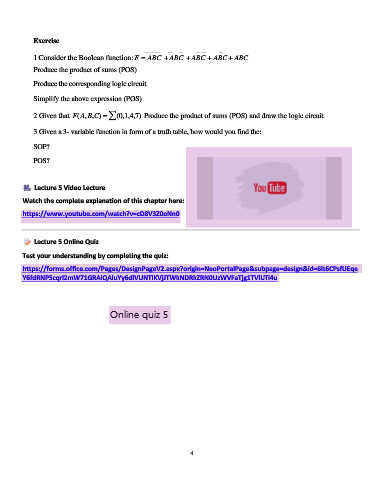

Exercise

            1 Consider the Boolean function: F = ABC + ABC + ABC + ABC + ABC

            Produce the product of sums (POS)
            Produce the corresponding logic circuit

            Simplify the above expression (POS)


            2 Given that  F( A, B,C) = (0,1,4,7) Produce the product of sums (POS) and draw the logic circuit

            3 Given a 3- variable function in form of a truth table, how would you find the:

            SOP?

            POS?


          Lecture 5 Video Lecture




        Watch the complete explanation of this chapter here:
        https://www.youtube.com/watch?v=cD8V3Z0oNn0






          Lecture 5 Online Quiz




        Test your understanding by completing the quiz:
        https://forms.office.com/Pages/DesignPageV2.aspx?origin=NeoPortalPage&subpage=design&id=6It6CPsfUEqe
        Y6fdRNP5cqrl2mW71GRAiQAluYy6dIVUNTlKVjJTWkNDRkZRN0UzWVFaTjg1TVlUTi4u
