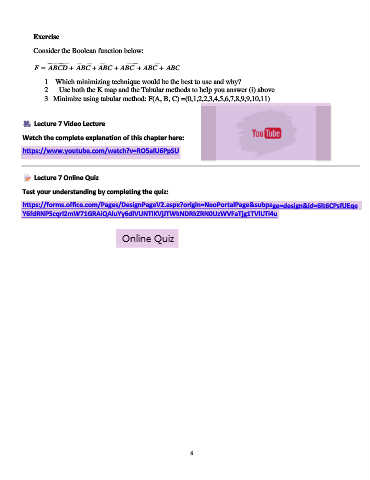

Exercise
Consider the Boolean function below:
F = ABCD + ABC + ABC + ABC + ABC + ABC
1 Which minimizing technique would be the best to use and why?
2 Use both the K map and the Tabular methods to help you answer (i) above
3 Minimize using tabular method: F(A, B, C) =(0,1,2,2,3,4,5,6,7,8,9,9,10,11)
Lecture 7 Video Lecture
Watch the complete explanation of this chapter here:
https://www.youtube.com/watch?v=RO5alU6PpSU
Lecture 7 Online Quiz
Test your understanding by completing the quiz:
https://forms.office.com/Pages/DesignPageV2.aspx?origin=NeoPortalPage&subpage=design&id=6It6CPsfUEqe
Y6fdRNP5cqrl2mW71GRAiQAluYy6dIVUNTlKVjJTWkNDRkZRN0UzWVFaTjg1TVlUTi4u
