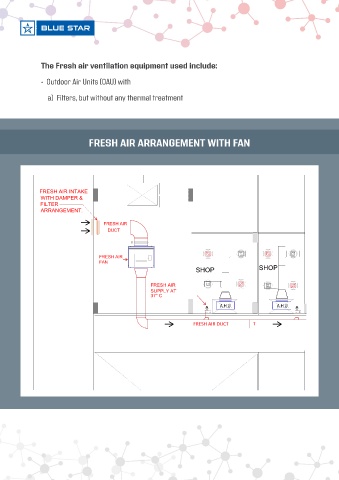

The Fresh air ventilation equipment used include:


               •  Outdoor Air Units (OAU) with

                  a)  Filters, but without any thermal treatment








                                FRESH AIR ARRANGEMENT WITH FAN









               FRESH AIR INTAKE
               WITH DAMPER &
               FILTER
               ARRANGEMENT.

                                     FRESH AIR
                                       DUCT




                                    FRESH AIR
                                    FAN
                                                                      SHOP                  SHOP


                                                      FRESH AIR
                                                      SUPPLY AT
                                                      37° C
                                                                              A.H.U.              A.H.U.
                                                                                   DSA1021/1052        DSA1021/1052
                                                                     FRESH AIR DUCT       T
