Attaching a Monitor

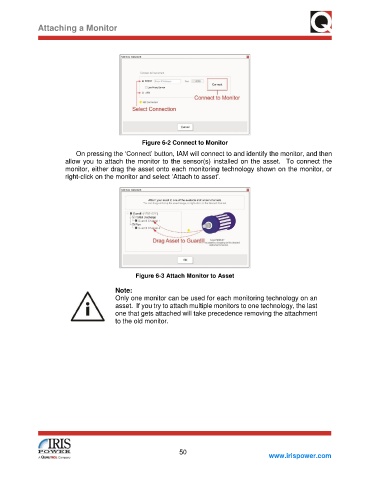

Figure 6-2 Connect to Monitor
On pressing the ‘Connect’ button, IAM will connect to and identify the monitor, and then
allow you to attach the monitor to the sensor(s) installed on the asset. To connect the
monitor, either drag the asset onto each monitoring technology shown on the monitor, or
right-click on the monitor and select ‘Attach to asset’.
Figure 6-3 Attach Monitor to Asset
Note:
Only one monitor can be used for each monitoring technology on an
asset. If you try to attach multiple monitors to one technology, the last
one that gets attached will take precedence removing the attachment
to the old monitor.
