Technical Data

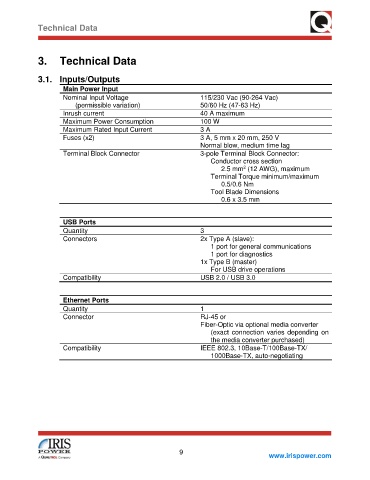

3. Technical Data

3.1. Inputs/Outputs

Main Power Input
Nominal Input Voltage 115/230 Vac (90-264 Vac)
(permissible variation) 50/60 Hz (47-63 Hz)
Inrush current 40 A maximum
Maximum Power Consumption 100 W
Maximum Rated Input Current 3 A
Fuses (x2) 3 A, 5 mm x 20 mm, 250 V
Normal blow, medium time lag
Terminal Block Connector 3-pole Terminal Block Connector:
Conductor cross section
2.5 mm (12 AWG), maximum
2
Terminal Torque minimum/maximum
0.5/0.6 Nm
Tool Blade Dimensions
0.6 x 3.5 mm

USB Ports
Quantity 3
Connectors 2x Type A (slave):
1 port for general communications
1 port for diagnostics
1x Type B (master)
For USB drive operations
Compatibility USB 2.0 / USB 3.0

Ethernet Ports
Quantity 1
Connector RJ-45 or
Fiber-Optic via optional media converter
(exact connection varies depending on
the media converter purchased)
Compatibility IEEE 802.3, 10Base-T/100Base-TX/
1000Base-TX, auto-negotiating
