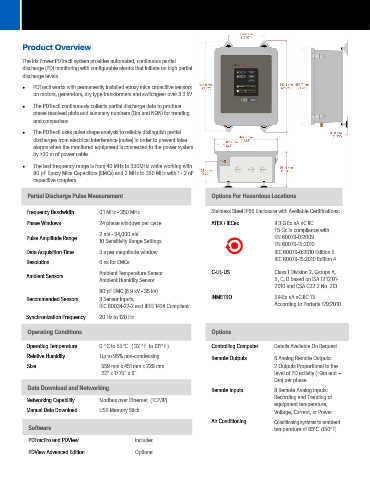

Product Overview

The Iris Power PDTracII system provides automated, continuous partial
discharge (PD) monitoring with configurable alarms that initiate on high partial
discharge levels.
• PDTracII works with permanently installed epoxy mica capacitive sensors
on motors, generators, dry type transformers and switchgear over 3.3 kV
• The PDTracII continuously collects partial discharge data to produce
phase resolved plots and summary numbers (Qm and NQN) for trending
and comparison.
• The PDTracII uses pulse shape analysis to reliably distinguish partial
discharges from electrical interference (noise) in order to prevent false
alarms when the monitored equipment is connected to the power system
by >30 m of power cable.
• The test frequency range is from 40 MHz to 350MHz while working with
80 pF Epoxy Mica Capacitors (EMCs) and 2 MHz to 350 MHz with 1 - 2 nF
capacitive couplers.

Partial Discharge Pulse Measurement Options For Hazardous Locations

Frequency Bandwidth 0.1 MHz - 350 MHz Stainless Steel IP66 Enclosure with Available Certifications:
Phase Windows 24 phase windows per cycle ATEX / IECex II 3 G Ex nA nC IIC
T5 Gc in compliance with
2 mV - 34,000 mV
Pulse Amplitude Range EN 60079-0:2009
10 Sensitivity Range Settings
EN 60079-15:2010
Data Acquisition Time 5 s per magnitude window IEC 60079-0:2010 Edition 5
IEC 60079-15:2010 Edition 4
Resolution 6 ns for EMCs
Ambient Temperature Sensor C-UL-US Class 1 Division 2, Groups A,
Ambient Sensors
Ambient Humidity Sensor B, C, D based on ISA 12.12.01-
2010 and CSA C22.2 No. 213.
80 pF EMC (6.9 kV - 35 kV)
Recommended Sensors 3 Sensor Inputs, INMETRO BR-Ex nA nC IIC T5
IEC 60034-27-2 and IEEE 1434 Compliant According to Portaria 179:2010

Synchronization Frequency 20 Hz to 120 Hz

Operating Conditions Options

o
o
o
o
Operating Temperature 0 C to 55 C ( 32 F to 131 F ) Controlling Computer Details Available On Request
Relative Humidity Up to 95% non-condensing
Remote Outputs 6 Analog Remote Outputs:
Size 559 mm x 451 mm x 229 mm 2 Outputs Proportional to the
22” x 17.75” x 9” level of PD activity (+Qm and –
Qm) per phase.
Data Download and Networking Remote Inputs 8 Remote Analog Inputs:
Recording and Trending of
Networking Capability Modbus over Ethernet (TCP/IP)
equipment temperature,
Manual Data Download USB Memory Stick Voltage, Current, or Power.
Air Conditioning Conditioning systems to ambient
Software temperature of 65 C (150 F)
o
o
PDTracPro and PDView Included
PDView Advanced Edition Optional
