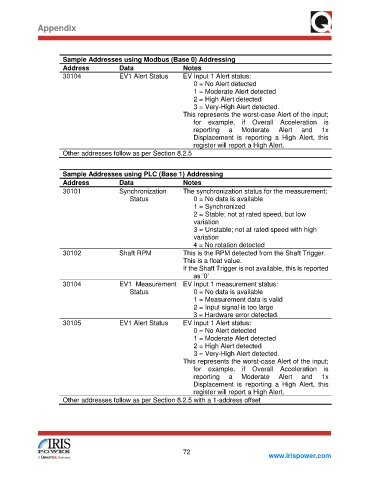

Page 78 - GuardII+ Series 4208 Platform EV User Manual

Appendix

Sample Addresses using Modbus (Base 0) Addressing
Address Data Notes
30104 EV1 Alert Status EV Input 1 Alert status:
0 = No Alert detected
1 = Moderate Alert detected
2 = High Alert detected
3 = Very-High Alert detected.
This represents the worst-case Alert of the input;
for example, if Overall Acceleration is
reporting a Moderate Alert and 1x
Displacement is reporting a High Alert, this
register will report a High Alert.
Other addresses follow as per Section 8.2.5

Sample Addresses using PLC (Base 1) Addressing
Address Data Notes
30101 Synchronization The synchronization status for the measurement:
Status 0 = No data is available
1 = Synchronized
2 = Stable; not at rated speed, but low
variation
3 = Unstable; not at rated speed with high
variation
4 = No rotation detected
30102 Shaft RPM This is the RPM detected from the Shaft Trigger.
This is a float value.
If the Shaft Trigger is not available, this is reported
as ‘0’
30104 EV1 Measurement EV Input 1 measurement status:
Status 0 = No data is available
1 = Measurement data is valid
2 = Input signal is too large
3 = Hardware error detected.
30105 EV1 Alert Status EV Input 1 Alert status:
0 = No Alert detected
1 = Moderate Alert detected
2 = High Alert detected
3 = Very-High Alert detected.
This represents the worst-case Alert of the input;
for example, if Overall Acceleration is
reporting a Moderate Alert and 1x
Displacement is reporting a High Alert, this
register will report a High Alert.
Other addresses follow as per Section 8.2.5 with a 1-address offset
