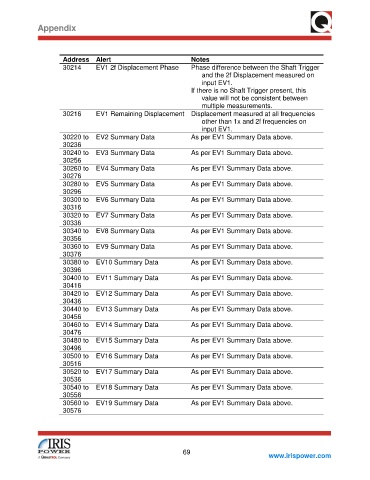

Page 75 - GuardII+ Series 4208 Platform EV User Manual

Appendix

Address Alert Notes
30214 EV1 2f Displacement Phase Phase difference between the Shaft Trigger
and the 2f Displacement measured on
input EV1.
If there is no Shaft Trigger present, this
value will not be consistent between
multiple measurements.
30216 EV1 Remaining Displacement Displacement measured at all frequencies
other than 1x and 2f frequencies on
input EV1.
30220 to EV2 Summary Data As per EV1 Summary Data above.
30236
30240 to EV3 Summary Data As per EV1 Summary Data above.
30256
30260 to EV4 Summary Data As per EV1 Summary Data above.
30276
30280 to EV5 Summary Data As per EV1 Summary Data above.
30296
30300 to EV6 Summary Data As per EV1 Summary Data above.
30316
30320 to EV7 Summary Data As per EV1 Summary Data above.
30336
30340 to EV8 Summary Data As per EV1 Summary Data above.
30356
30360 to EV9 Summary Data As per EV1 Summary Data above.
30376
30380 to EV10 Summary Data As per EV1 Summary Data above.
30396
30400 to EV11 Summary Data As per EV1 Summary Data above.
30416
30420 to EV12 Summary Data As per EV1 Summary Data above.
30436
30440 to EV13 Summary Data As per EV1 Summary Data above.
30456
30460 to EV14 Summary Data As per EV1 Summary Data above.
30476
30480 to EV15 Summary Data As per EV1 Summary Data above.
30496
30500 to EV16 Summary Data As per EV1 Summary Data above.
30516
30520 to EV17 Summary Data As per EV1 Summary Data above.
30536
30540 to EV18 Summary Data As per EV1 Summary Data above.
30556
30560 to EV19 Summary Data As per EV1 Summary Data above.
30576
