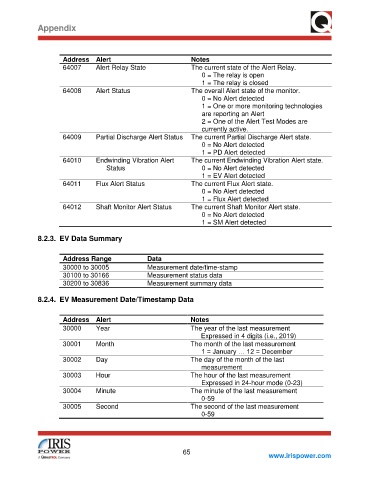

Appendix

Address Alert Notes
64007 Alert Relay State The current state of the Alert Relay.
0 = The relay is open
1 = The relay is closed
64008 Alert Status The overall Alert state of the monitor.
0 = No Alert detected
1 = One or more monitoring technologies
are reporting an Alert
2 = One of the Alert Test Modes are
currently active.
64009 Partial Discharge Alert Status The current Partial Discharge Alert state.
0 = No Alert detected
1 = PD Alert detected
64010 Endwinding Vibration Alert The current Endwinding Vibration Alert state.
Status 0 = No Alert detected
1 = EV Alert detected
64011 Flux Alert Status The current Flux Alert state.
0 = No Alert detected
1 = Flux Alert detected
64012 Shaft Monitor Alert Status The current Shaft Monitor Alert state.
0 = No Alert detected
1 = SM Alert detected

8.2.3. EV Data Summary

Address Range Data
30000 to 30005 Measurement date/time-stamp
30100 to 30166 Measurement status data
30200 to 30836 Measurement summary data

8.2.4. EV Measurement Date/Timestamp Data

Address Alert Notes
30000 Year The year of the last measurement
Expressed in 4 digits (i.e., 2019)
30001 Month The month of the last measurement
1 = January … 12 = December
30002 Day The day of the month of the last
measurement
30003 Hour The hour of the last measurement
Expressed in 24-hour mode (0-23)
30004 Minute The minute of the last measurement
0-59
30005 Second The second of the last measurement
0-59
