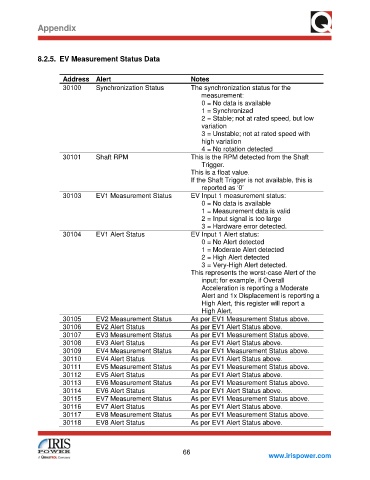

Page 72 - GuardII+ Series 4208 Platform EV User Manual

Appendix

8.2.5. EV Measurement Status Data

Address Alert Notes
30100 Synchronization Status The synchronization status for the
measurement:
0 = No data is available
1 = Synchronized
2 = Stable; not at rated speed, but low
variation
3 = Unstable; not at rated speed with
high variation
4 = No rotation detected
30101 Shaft RPM This is the RPM detected from the Shaft
Trigger.
This is a float value.
If the Shaft Trigger is not available, this is
reported as ‘0’
30103 EV1 Measurement Status EV Input 1 measurement status:
0 = No data is available
1 = Measurement data is valid
2 = Input signal is too large
3 = Hardware error detected.
30104 EV1 Alert Status EV Input 1 Alert status:
0 = No Alert detected
1 = Moderate Alert detected
2 = High Alert detected
3 = Very-High Alert detected.
This represents the worst-case Alert of the
input; for example, if Overall
Acceleration is reporting a Moderate
Alert and 1x Displacement is reporting a
High Alert, this register will report a
High Alert.
30105 EV2 Measurement Status As per EV1 Measurement Status above.
30106 EV2 Alert Status As per EV1 Alert Status above.
30107 EV3 Measurement Status As per EV1 Measurement Status above.
30108 EV3 Alert Status As per EV1 Alert Status above.
30109 EV4 Measurement Status As per EV1 Measurement Status above.
30110 EV4 Alert Status As per EV1 Alert Status above.
30111 EV5 Measurement Status As per EV1 Measurement Status above.
30112 EV5 Alert Status As per EV1 Alert Status above.
30113 EV6 Measurement Status As per EV1 Measurement Status above.
30114 EV6 Alert Status As per EV1 Alert Status above.
30115 EV7 Measurement Status As per EV1 Measurement Status above.
30116 EV7 Alert Status As per EV1 Alert Status above.
30117 EV8 Measurement Status As per EV1 Measurement Status above.
30118 EV8 Alert Status As per EV1 Alert Status above.
