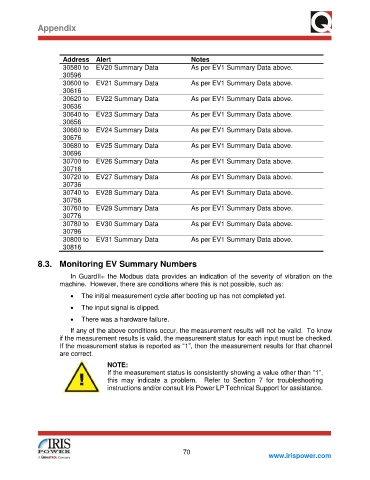

Page 76 - GuardII+ Series 4208 Platform EV User Manual

Appendix

Address Alert Notes
30580 to EV20 Summary Data As per EV1 Summary Data above.
30596
30600 to EV21 Summary Data As per EV1 Summary Data above.
30616
30620 to EV22 Summary Data As per EV1 Summary Data above.
30636
30640 to EV23 Summary Data As per EV1 Summary Data above.
30656
30660 to EV24 Summary Data As per EV1 Summary Data above.
30676
30680 to EV25 Summary Data As per EV1 Summary Data above.
30696
30700 to EV26 Summary Data As per EV1 Summary Data above.
30716
30720 to EV27 Summary Data As per EV1 Summary Data above.
30736
30740 to EV28 Summary Data As per EV1 Summary Data above.
30756
30760 to EV29 Summary Data As per EV1 Summary Data above.
30776
30780 to EV30 Summary Data As per EV1 Summary Data above.
30796
30800 to EV31 Summary Data As per EV1 Summary Data above.
30816

8.3. Monitoring EV Summary Numbers
In GuardII+ the Modbus data provides an indication of the severity of vibration on the
machine. However, there are conditions where this is not possible, such as:
• The initial measurement cycle after booting up has not completed yet.

• The input signal is clipped.
• There was a hardware failure.
If any of the above conditions occur, the measurement results will not be valid. To know
if the measurement results is valid, the measurement status for each input must be checked.
If the measurement status is reported as “1”, then the measurement results for that channel
are correct.
NOTE:
If the measurement status is consistently showing a value other than “1”,
this may indicate a problem. Refer to Section 7 for troubleshooting
instructions and/or consult Iris Power LP Technical Support for assistance.
