Troubleshooting



                     whether  the  hardware  has  been  properly  detected  or  whether  the  system  is  configured
                     properly.  For rapid resolution of any Technical Support issue, this should be included on any
                     Technical Support inquiry.

                        Any basic diagnostic failure will cause the Error indicator on the front panel to be blink
                     orange; so, if the Error indicator is blinking orange, the basic diagnostics should be the first
                     thing to check.

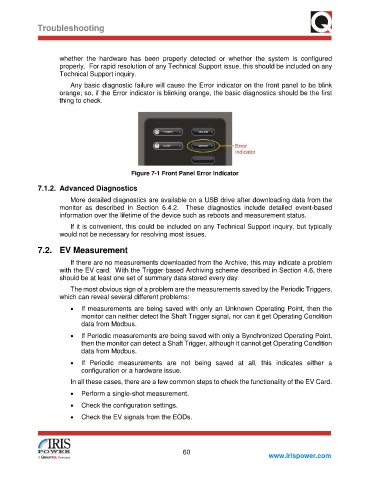

                                            Figure 7-1 Front Panel Error Indicator

              7.1.2.  Advanced Diagnostics
                        More detailed diagnostics are available on a USB drive after downloading data from the
                     monitor  as  described  in  Section  6.4.2.    These  diagnostics  include  detailed  event-based
                     information over the lifetime of the device such as reboots and measurement status.
                        If it is convenient, this could be included on any Technical Support inquiry, but typically
                     would not be necessary for resolving most issues.

              7.2.  EV Measurement
                        If there are no measurements downloaded from the Archive, this may indicate a problem
                     with the EV card.  With the Trigger-based Archiving scheme described in Section 4.6, there
                     should be at least one set of summary data stored every day.

                        The most obvious sign of a problem are the measurements saved by the Periodic Triggers,
                     which can reveal several different problems:

                        •  If measurements are being saved with only an Unknown Operating Point, then the
                            monitor can neither detect the Shaft Trigger signal, nor can it get Operating Condition
                            data from Modbus.
                        •  If Periodic measurements are being saved with only a Synchronized Operating Point,
                            then the monitor can detect a Shaft Trigger, although it cannot get Operating Condition
                            data from Modbus.
                        •  If  Periodic  measurements  are  not  being  saved  at  all,  this  indicates  either  a
                            configuration or a hardware issue.
                        In all these cases, there are a few common steps to check the functionality of the EV Card.
                        •  Perform a single-shot measurement.

                        •  Check the configuration settings.
                        •  Check the EV signals from the EODs.
