User Instructions

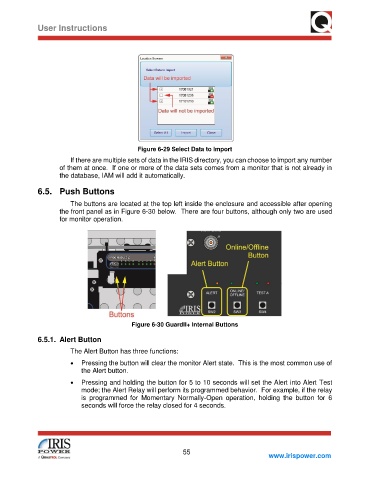

Figure 6-29 Select Data to Import
If there are multiple sets of data in the IRIS directory, you can choose to import any number
of them at once. If one or more of the data sets comes from a monitor that is not already in
the database, IAM will add it automatically.
6.5. Push Buttons
The buttons are located at the top left inside the enclosure and accessible after opening
the front panel as in Figure 6-30 below. There are four buttons, although only two are used
for monitor operation.
Figure 6-30 GuardII+ Internal Buttons
6.5.1. Alert Button
The Alert Button has three functions:
• Pressing the button will clear the monitor Alert state. This is the most common use of
the Alert button.
• Pressing and holding the button for 5 to 10 seconds will set the Alert into Alert Test
mode; the Alert Relay will perform its programmed behavior. For example, if the relay
is programmed for Momentary Normally-Open operation, holding the button for 6
seconds will force the relay closed for 4 seconds.
