Troubleshooting



                     whether or not the hardware has been properly detected or whether the system is configured
                     properly.  For rapid resolution of any Technical Support issue, this should be included on any
                     Technical Support inquiry.

                        Any basic diagnostic failure will cause the Error indicator on the front panel to be blink
                     orange; so, if the Error indicator is blinking orange, the basic diagnostics should be the first
                     thing to check.

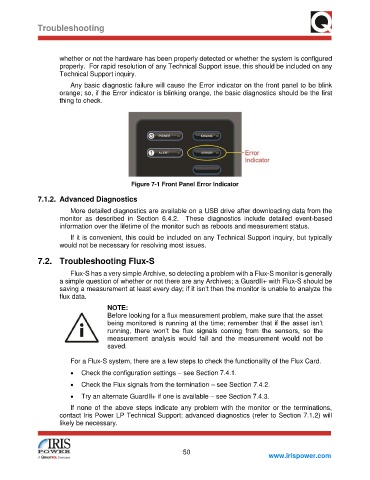

                                            Figure 7-1 Front Panel Error Indicator

              7.1.2.  Advanced Diagnostics

                        More detailed diagnostics are available on a USB drive after downloading data from the
                     monitor  as  described  in  Section  6.4.2.    These  diagnostics  include  detailed  event-based
                     information over the lifetime of the monitor such as reboots and measurement status.
                        If it is convenient, this could be included on any Technical Support inquiry, but typically
                     would not be necessary for resolving most issues.

              7.2.  Troubleshooting Flux-S

                        Flux-S has a very simple Archive, so detecting a problem with a Flux-S monitor is generally
                     a simple question of whether or not there are any Archives; a GuardII+ with Flux-S should be
                     saving a measurement at least every day; if it isn’t then the monitor is unable to analyze the
                     flux data.

                                     NOTE:
                                     Before looking for a flux measurement problem, make sure that the asset
                                     being monitored is running at the time; remember that if the asset isn’t
                                     running,  there  won’t  be  flux  signals  coming  from  the  sensors,  so  the

                                     measurement  analysis  would  fail  and  the  measurement  would  not  be
                                     saved.

                        For a Flux-S system, there are a few steps to check the functionality of the Flux Card.
                        •  Check the configuration settings – see Section 7.4.1.
                        •  Check the Flux signals from the termination – see Section 7.4.2.

                        •  Try an alternate GuardII+ if one is available – see Section 7.4.3.
                        If  none  of  the  above  steps  indicate  any  problem  with  the monitor  or the  terminations,
                     contact Iris Power LP Technical Support; advanced diagnostics (refer to Section 7.1.2) will
                     likely be necessary.
