Introduction

1.2. Features

• Accepts flux signals from TFProbes, FFProbes and other Iris Power LP approved flux
probes
• Input for shaft trigger (keyphasor) signal for pole determination

• Compares flux between poles
• Monitors 2-pole or 4-pole round rotor machines
• Monitors 4-pole to 128-pole salient pole machines

• Integrates with the GuardII+ Platform Alert relay contact to alert the User
• Compatible results with RFAII instruments and FluxTracII monitors

• Archive for storing measurement data
• Monitors up to 10 load points for round rotor applications

• Built-in outputs for running measurements to test hardware functionality

1.3. Application Diagrams

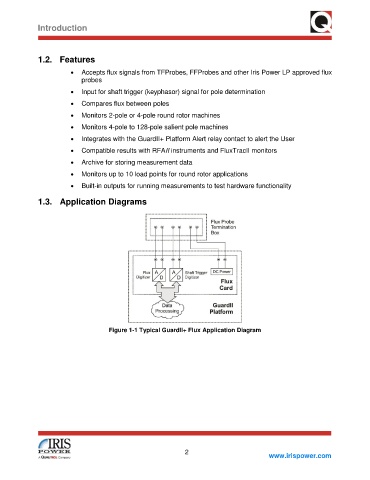

Figure 1-1 Typical GuardII+ Flux Application Diagram
