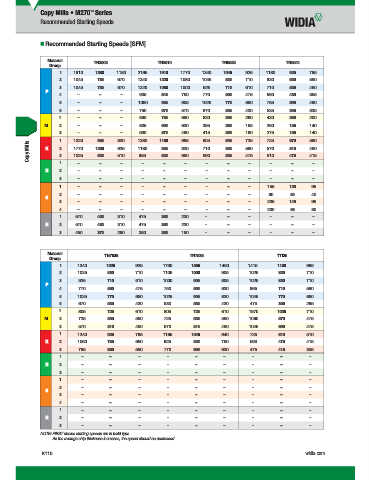

Page 1018 - Master Catalog 2017, Inch

Copy Mills • M270 Series
™
Recommended Starting Speeds

„ Recommended Starting Speeds [SFM]

Material TN2505 TN2510 TN6525 TN6540
Group
1 1810 1380 1180 2165 1910 1770 1340 1045 925 1180 925 785
2 1045 785 670 1340 1220 1080 1045 830 710 830 630 550
3 1045 785 670 1220 1080 1000 925 710 610 710 550 450
P
4 – – – 905 845 750 770 550 475 590 430 355
5 – – – 1080 985 905 1025 770 650 785 590 490
6 – – – 750 670 570 670 535 430 535 395 335
1 – – – 890 785 690 630 395 260 430 260 200
M 2 – – – 805 690 630 395 260 155 260 155 140
3 – – – 630 570 490 415 260 180 275 155 140
1 1320 985 830 1380 1180 985 905 805 725 725 670 590
Copy Mills K 2 3 1770 1200 925 1180 985 830 710 630 590 570 510 450

1025
535
590
650
475
415
475
510
830
510
985
630
1 – – – – – – – – – – – –
N 2 – – – – – – – – – – – –
3 – – – – – – – – – – – –
1 – – – – – – – – – 155 120 95
2 – – – – – – – – – 80 60 40
S
3 – – – – – – – – – 235 140 95
4 – – – – – – – – – 200 95 80
1 570 450 310 475 360 230 – – – – – –
H 2 570 450 310 475 360 230 – – – – – –
3 450 370 260 380 260 150 – – – – – –
Material TN7525 TN7535 TTI25
Group
1 1340 1025 925 1790 1555 1460 1415 1180 985
2 1025 830 710 1105 1000 905 1025 830 710
3 925 710 610 1000 905 805 1025 830 710
P
4 770 550 475 750 690 630 865 710 590
5 1025 770 650 1025 905 830 1045 770 650
6 670 535 430 630 535 430 475 355 295
1 805 725 610 805 725 610 1570 1025 710
M 2 725 630 550 725 630 550 1060 670 475
3 570 510 450 570 510 450 1045 690 475
1 1240 925 785 1165 1045 940 725 610 510
K 2 1060 785 650 925 830 750 590 475 415
3 785 650 550 770 690 630 475 415 335
1 – – – – – – – – –
N 2 – – – – – – – – –
3 – – – – – – – – –
1 – – – – – – – – –
2 – – – – – – – – –
S
3 – – – – – – – – –
4 – – – – – – – – –
1 – – – – – – – – –
H 2 – – – – – – – – –
3 – – – – – – – – –
NOTE: FIRST choice starting speeds are in bold type.
As the average chip thickness increases, the speed should be decreased.
