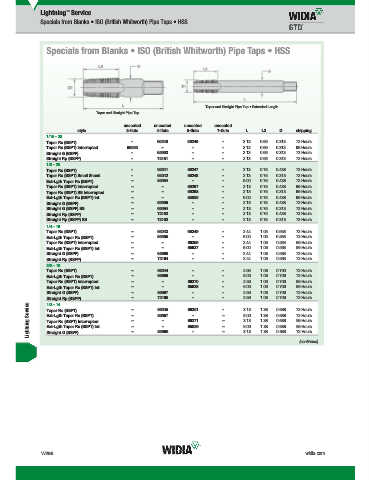

Page 1994 - Master Catalog 2017, Inch

Lightning Service
™
Specials from Blanks • ISO (British Whitworth) Pipe Taps • HSS

Specials from Blanks • ISO (British Whitworth) Pipe Taps • HSS

Taper and Straight Pipe Tap • Extended Length
Taper and Straight Pipe Tap

uncoated uncoated uncoated uncoated
style 3-fl ute 4-fl ute 5-fl ute 7-fl ute L L3 D shipping
1/16 - 28
Taper Rc (BSPT) – 66240 66246 – 2.13 0.69 0.313 72 Hours
Taper Rc (BSPT) Interrupted 66266 – – – 2.13 0.69 0.313 96 Hours
Straight G (BSPF) – 65993 – – 2.13 0.69 0.313 72 Hours
Straight Rp (BSPP) – 72161 – – 2.13 0.69 0.313 72 Hours
1/8 - 28
Taper Rc (BSPT) – 66241 66247 – 2.13 0.75 0.438 72 Hours
Taper Rc (BSPT) Small Shank – 66242 66248 – 2.13 0.75 0.313 72 Hours
Ext-Lgth Taper Rc (BSPT) – 65954 – – 6.00 0.75 0.438 72 Hours
Taper Rc (BSPT) Interrupted – – 66267 – 2.13 0.75 0.438 96 Hours
Taper Rc (BSPT) SS Interrupted – – 66268 – 2.13 0.75 0.313 96 Hours
Ext-Lgth Taper Rc (BSPT) Int. – – 65936 – 6.00 0.75 0.438 96 Hours
Straight G (BSPF) – 65995 – – 2.13 0.75 0.438 72 Hours
Straight G (BSPF) SS – 65994 – – 2.13 0.75 0.313 72 Hours
Straight Rp (BSPP) – 72163 – – 2.13 0.75 0.438 72 Hours
Straight Rp (BSPP) SS – 72162 – – 2.13 0.75 0.313 72 Hours
1/4 - 19
Taper Rc (BSPT) – 66243 66249 – 2.44 1.06 0.563 72 Hours
Ext-Lgth Taper Rc (BSPT) – 65955 – – 6.00 1.06 0.563 72 Hours
Taper Rc (BSPT) Interrupted – – 66269 – 2.44 1.06 0.563 96 Hours
Ext-Lgth Taper Rc (BSPT) Int. – – 65937 – 6.00 1.06 0.563 96 Hours
Straight G (BSPF) – 65996 – – 2.44 1.06 0.563 72 Hours
Straight Rp (BSPP) – 72164 – – 2.44 1.06 0.563 72 Hours
3/8 - 19
Taper Rc (BSPT) – 66244 – – 2.56 1.06 0.700 72 Hours
Ext-Lgth Taper Rc (BSPT) – 65956 – – 6.00 1.06 0.700 72 Hours
Taper Rc (BSPT) Interrupted – – 66270 – 2.56 1.06 0.700 96 Hours
Ext-Lgth Taper Rc (BSPT) Int. – – 65938 – 6.00 1.06 0.700 96 Hours
Straight G (BSPF) – 65997 – – 2.56 1.06 0.700 72 Hours
Straight Rp (BSPP) – 72165 – – 2.56 1.06 0.700 72 Hours
Lightning Service Taper Rc (BSPT) – – – – 66245 66251 – – – – 3.13 1.38 0.688 72 Hours
1/2 - 14
72 Hours
65957
–
6.00
1.38
0.688
Ext-Lgth Taper Rc (BSPT)
96 Hours
–
66271
0.688
1.38
3.13
Taper Rc (BSPT) Interrupted
0.688
6.00
1.38
65939
96 Hours
–
Ext-Lgth Taper Rc (BSPT) Int.
3.13
72 Hours
0.688
1.38
–
–
–
65998
Straight G (BSPF)
(continued)
