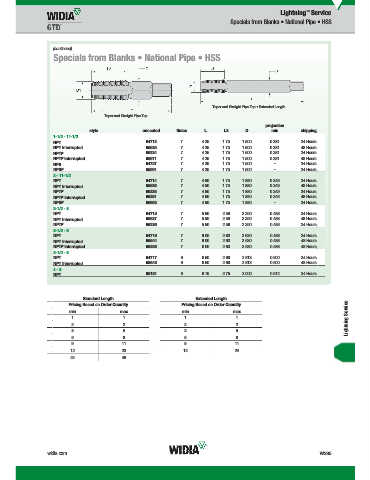

Page 1993 - Master Catalog 2017, Inch
P. 1993
Lightning Service
™
Specials from Blanks • National Pipe • HSS
(continued)
Specials from Blanks • National Pipe • HSS
Taper and Straight Pipe Tap • Extended Length
Taper and Straight Pipe Tap
projection
style uncoated fl utes L L3 D min shipping
1-1/2 - 11-1/2
NPT 64713 7 4.25 1.75 1.500 0.381 24 Hours
NPT Interrupted 65635 7 4.25 1.75 1.500 0.381 48 Hours
NPTF 66234 7 4.25 1.75 1.500 0.381 24 Hours
NPTF Interrupted 65671 7 4.25 1.75 1.500 0.381 48 Hours
NPS 64727 7 4.25 1.75 1.500 – 24 Hours
NPSF 65991 7 4.25 1.75 1.500 – 24 Hours
2 - 11-1/2
NPT 64714 7 4.50 1.75 1.880 0.349 24 Hours
NPT Interrupted 65636 7 4.50 1.75 1.880 0.349 48 Hours
NPTF 66235 7 4.50 1.75 1.880 0.349 24 Hours
NPTF Interrupted 66261 7 4.50 1.75 1.880 0.349 48 Hours
NPSF 65992 7 4.50 1.75 1.880 – 24 Hours
2-1/2 - 8
NPT 64715 7 5.50 2.56 2.250 0.488 24 Hours
NPT Interrupted 65637 7 5.50 2.56 2.250 0.488 48 Hours
NPTF 66236 7 5.50 2.56 2.250 0.488 24 Hours
3-1/2 - 8
NPT 64716 7 6.00 2.63 2.630 0.488 24 Hours
NPT Interrupted 65644 7 6.00 2.63 2.630 0.488 48 Hours
NPTF Interrupted 66263 7 6.00 2.63 2.630 0.488 48 Hours
3-1/2 - 8
NPT 64717 9 6.50 2.69 2.813 0.500 24 Hours
NPT Interrupted 65645 9 6.50 2.69 2.813 0.500 48 Hours
4 - 8
NPT 65181 9 6.75 2.75 3.000 0.512 24 Hours
Standard Length Extended Length
Pricing Based on Order Quantity Pricing Based on Order Quantity
min max min max
1 1 1 1 Lightning Service
2 2 2 2
3 5 3 5
6 8 6 8
9 11 9 11
12 23 12 24
24 48
widia.com W295
