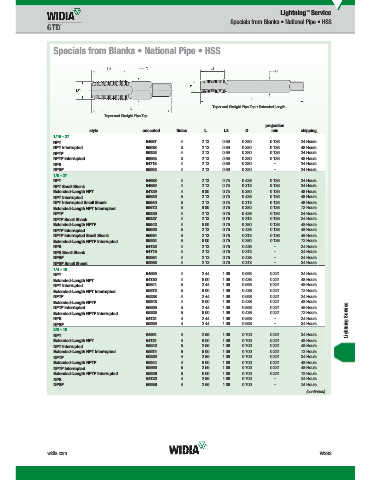

Page 1991 - Master Catalog 2017, Inch

Lightning Service
™
Specials from Blanks • National Pipe • HSS

Specials from Blanks • National Pipe • HSS

Taper and Straight Pipe Tap • Extended Length
Taper and Straight Pipe Tap
projection
style uncoated fl utes L L3 D min shipping
1/16 - 27
NPT 64687 4 2.13 0.69 0.380 0.136 24 Hours
NPT Interrupted 65638 3 2.13 0.69 0.380 0.136 48 Hours
NPTF 66225 4 2.13 0.69 0.380 0.136 24 Hours
NPTF Interrupted 65662 3 2.13 0.69 0.380 0.136 48 Hours
NPS 64718 4 2.13 0.69 0.380 – 24 Hours
NPSF 65982 4 2.13 0.69 0.380 – 24 Hours
1/8 - 27
NPT 64688 4 2.13 0.75 0.438 0.136 24 Hours
NPT Small Shank 64689 4 2.13 0.75 0.313 0.136 24 Hours
Extended-Length NPT 64729 4 6.00 0.75 0.380 0.136 48 Hours
NPT Interrupted 65639 5 2.13 0.75 0.438 0.136 48 Hours
NPT Interrupted Small Shank 65640 5 2.13 0.75 0.313 0.136 48 Hours
Extended-Length NPT Interrupted 65672 5 6.00 0.75 0.380 0.136 72 Hours
NPTF 66226 4 2.13 0.75 0.438 0.136 24 Hours
NPTF Small Shank 66227 4 2.13 0.75 0.313 0.136 24 Hours
Extended-Length NPTF 65942 4 6.00 0.75 0.380 0.136 48 Hours
NPTF Interrupted 65663 5 2.13 0.75 0.438 0.136 48 Hours
NPTF Interrupted Small Shank 65664 5 2.13 0.75 0.313 0.136 48 Hours
Extended-Length NPTF Interrupted 65924 5 6.00 0.75 0.380 0.136 72 Hours
NPS 64720 4 2.13 0.75 0.438 – 24 Hours
NPS Small Shank 64719 4 2.13 0.75 0.313 – 24 Hours
NPSF 65984 4 2.13 0.75 0.438 – 24 Hours
NPSF Small Shank 65983 4 2.13 0.75 0.313 – 24 Hours
1/4 - 18
NPT 64690 4 2.44 1.06 0.563 0.221 24 Hours
Extended-Length NPT 64730 4 6.00 1.06 0.438 0.221 48 Hours
NPT Interrupted 65641 5 2.44 1.06 0.563 0.221 48 Hours
Extended-Length NPT Interrupted 65673 5 6.00 1.06 0.438 0.221 72 Hours
NPTF 66228 4 2.44 1.06 0.563 0.221 24 Hours
Extended-Length NPTF 65943 4 6.00 1.06 0.438 0.221 48 Hours
NPTF Interrupted 65665 5 2.44 1.06 0.563 0.221 48 Hours
Extended-Length NPTF Interrupted 65925 5 6.00 1.06 0.438 0.221 72 Hours
NPS 64721 4 2.44 1.06 0.563 – 24 Hours Lightning Service
NPSF 65985 4 2.44 1.06 0.563 – 24 Hours
3/8 - 18
NPT 64691 4 2.56 1.06 0.700 0.221 24 Hours
Extended-Length NPT 64731 4 6.00 1.06 0.700 0.221 48 Hours
NPT Interrupted 65642 5 2.56 1.06 0.700 0.221 48 Hours
Extended-Length NPT Interrupted 65674 5 6.00 1.06 0.700 0.221 72 Hours
NPTF 66229 4 2.56 1.06 0.700 0.221 24 Hours
Extended-Length NPTF 65944 4 6.00 1.06 0.700 0.221 48 Hours
NPTF Interrupted 65666 5 2.56 1.06 0.700 0.221 48 Hours
Extended-Length NPTF Interrupted 65926 5 6.00 1.06 0.700 0.221 72 Hours
NPS 64722 4 2.56 1.06 0.700 – 24 Hours
NPSF 65986 4 2.56 1.06 0.700 – 24 Hours
(continued)
