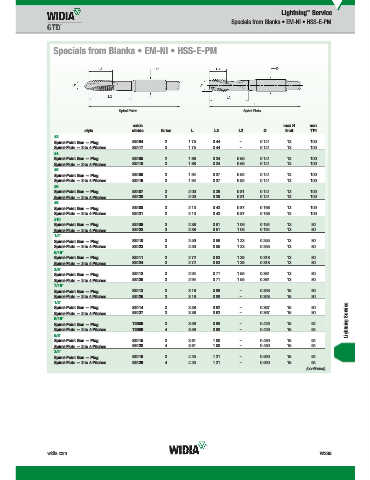

Page 1987 - Master Catalog 2017, Inch

Lightning Service
™
Specials from Blanks • EM-NI • HSS-E-PM

Specials from Blanks • EM-NI • HSS-E-PM

Spiral Point Spiral Flute

oxide max H max
style nitride fl utes L L3 L2 D limit TPI
#2
Spiral-Point Gun — Plug 83104 2 1.75 0.44 – 0.141 13 100
Spiral-Flute — 3 to 4 Pitches 83117 3 1.75 0.44 – 0.141 13 100
#4
Spiral-Point Gun — Plug 83105 2 1.88 0.34 0.56 0.141 13 100
Spiral-Flute — 3 to 4 Pitches 83118 3 1.88 0.34 0.56 0.141 13 100
#5
Spiral-Point Gun — Plug 83106 3 1.94 0.37 0.62 0.141 13 100
Spiral-Flute — 3 to 4 Pitches 83119 3 1.94 0.37 0.62 0.141 13 100
#6
Spiral-Point Gun — Plug 83107 3 2.00 0.39 0.81 0.141 13 100
Spiral-Flute — 3 to 4 Pitches 83120 3 2.00 0.39 0.81 0.141 13 100
#8
Spiral-Point Gun — Plug 83108 3 2.13 0.43 0.87 0.168 13 100
Spiral-Flute — 3 to 4 Pitches 83121 3 2.13 0.43 0.87 0.168 13 100
#10
Spiral-Point Gun — Plug 83109 3 2.38 0.51 1.06 0.194 13 80
Spiral-Flute — 3 to 4 Pitches 83122 3 2.38 0.51 1.06 0.194 13 80
1/4"
Spiral-Point Gun — Plug 83110 3 2.50 0.56 1.23 0.255 13 80
Spiral-Flute — 3 to 4 Pitches 83123 3 2.50 0.56 1.23 0.255 13 80
5/16"
Spiral-Point Gun — Plug 83111 3 2.72 0.63 1.39 0.318 13 80
Spiral-Flute — 3 to 4 Pitches 83124 3 2.72 0.63 1.39 0.318 13 80
3/8"
Spiral-Point Gun — Plug 83112 3 2.94 0.71 1.55 0.381 13 80
Spiral-Flute — 3 to 4 Pitches 83125 3 2.94 0.71 1.55 0.381 13 80
7/16"
Spiral-Point Gun — Plug 83113 3 3.16 0.88 – 0.323 15 80
Spiral-Flute — 3 to 4 Pitches 83126 3 3.16 0.88 – 0.323 15 80
1/2"
Spiral-Point Gun — Plug 83114 3 3.38 0.92 – 0.367 15 80
Spiral-Flute — 3 to 4 Pitches 83127 3 3.38 0.92 – 0.367 15 80
9/16" Lightning Service
Spiral-Point Gun — Plug 72009 3 3.59 0.98 – 0.429 15 64
Spiral-Flute — 3 to 4 Pitches 72099 4 3.59 0.98 – 0.429 15 64
5/8"
Spiral-Point Gun — Plug 83115 3 3.81 1.06 – 0.480 15 64
Spiral-Flute — 3 to 4 Pitches 83128 4 3.81 1.06 – 0.480 15 64
3/4"
Spiral-Point Gun — Plug 83116 3 4.25 1.21 – 0.590 15 64
Spiral-Flute — 3 to 4 Pitches 83129 4 4.25 1.21 – 0.590 15 64
