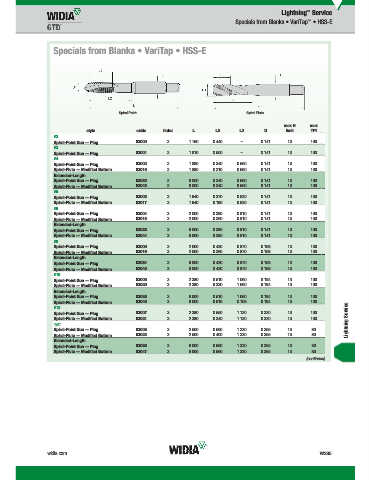

Page 1983 - Master Catalog 2017, Inch

P. 1983

Lightning Service
™
Specials from Blanks • VariTap • HSS-E
™

Specials from Blanks • VariTap • HSS-E

Spiral Point Spiral Flute

max H max
style oxide ﬂ utes L L3 L2 D limit TPI
#2
Spiral-Point Gun — Plug 83000 2 1.750 0.440 – 0.141 13 100
#3
Spiral-Point Gun — Plug 83001 2 1.810 0.500 – 0.141 13 100
#4
Spiral-Point Gun — Plug 83002 2 1.880 0.340 0.560 0.141 13 100
Spiral-Flute — Modiﬁ ed Bottom 83016 2 1.880 0.310 0.560 0.141 13 100
Extended-Length
Spiral-Point Gun — Plug 83032 2 6.000 0.340 0.560 0.141 13 100
Spiral-Flute — Modiﬁ ed Bottom 83043 2 6.000 0.340 0.560 0.141 13 100
#5
Spiral-Point Gun — Plug 83003 3 1.940 0.370 0.620 0.141 13 100
Spiral-Flute — Modiﬁ ed Bottom 83017 3 1.940 0.190 0.620 0.141 13 100
#6
Spiral-Point Gun — Plug 83004 3 2.000 0.390 0.810 0.141 13 100
Spiral-Flute — Modiﬁ ed Bottom 83018 3 2.000 0.260 0.810 0.141 13 100
Extended-Length
Spiral-Point Gun — Plug 83033 3 6.000 0.390 0.810 0.141 13 100
Spiral-Flute — Modiﬁ ed Bottom 83044 3 6.000 0.390 0.810 0.141 13 100
#8
Spiral-Point Gun — Plug 83005 3 2.000 0.430 0.870 0.168 13 100
Spiral-Flute — Modiﬁ ed Bottom 83019 3 2.000 0.260 0.870 0.168 13 100
Extended-Length
Spiral-Point Gun — Plug 83034 3 6.000 0.430 0.870 0.168 13 100
Spiral-Flute — Modiﬁ ed Bottom 83045 3 6.000 0.430 0.870 0.168 13 100
#10
Spiral-Point Gun — Plug 83006 3 2.380 0.510 1.060 0.194 13 100
Spiral-Flute — Modiﬁ ed Bottom 83020 3 2.380 0.330 1.060 0.194 13 100
Extended-Length
Spiral-Point Gun — Plug 83035 3 6.000 0.510 1.060 0.194 13 100
Spiral-Flute — Modiﬁ ed Bottom 83046 3 6.000 0.510 0.106 0.194 13 100
#12
Spiral-Point Gun — Plug 83007 3 2.380 0.550 1.120 0.220 13 100
Spiral-Flute — Modiﬁ ed Bottom 83021 3 2.380 0.340 1.120 0.220 13 100 Lightning Service
1/4"
Spiral-Point Gun — Plug 83008 3 2.500 0.560 1.230 0.255 13 80
Spiral-Flute — Modiﬁ ed Bottom 83022 3 2.500 0.400 1.230 0.255 13 80
Extended-Length
Spiral-Point Gun — Plug 83036 3 6.000 0.560 1.230 0.255 13 80
Spiral-Flute — Modiﬁ ed Bottom 83047 3 6.000 0.560 1.230 0.255 13 80
(continued)
