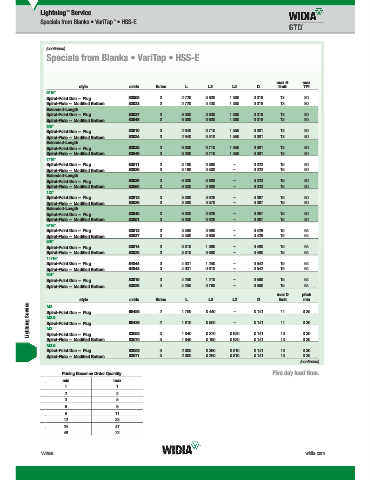

Page 1984 - Master Catalog 2017, Inch

Lightning Service
™
Specials from Blanks • VariTap • HSS-E
™

(continued)
Specials from Blanks • VariTap • HSS-E

max H max
style oxide fl utes L L3 L2 D limit TPI
5/16"
Spiral-Point Gun — Plug 83009 3 2.720 0.630 1.390 0.318 13 80
Spiral-Flute — Modifi ed Bottom 83023 3 2.720 0.430 1.390 0.318 13 80
Extended-Length
Spiral-Point Gun — Plug 83037 3 6.000 0.630 1.390 0.318 13 80
Spiral-Flute — Modifi ed Bottom 83048 3 6.000 0.630 1.390 0.318 13 80
3/8"
Spiral-Point Gun — Plug 83010 3 2.940 0.710 1.550 0.381 13 80
Spiral-Flute — Modifi ed Bottom 83024 3 2.940 0.510 1.550 0.381 13 80
Extended-Length
Spiral-Point Gun — Plug 83038 3 6.000 0.710 1.550 0.381 13 80
Spiral-Flute — Modifi ed Bottom 83049 3 6.000 0.710 1.550 0.381 13 80
7/16"
Spiral-Point Gun — Plug 83011 3 3.160 0.880 – 0.323 15 80
Spiral-Flute — Modifi ed Bottom 83025 3 3.160 0.500 – 0.323 15 80
Extended-Length
Spiral-Point Gun — Plug 83039 3 6.000 0.880 – 0.323 15 80
Spiral-Flute — Modifi ed Bottom 83050 3 6.000 0.880 – 0.323 15 80
1/2"
Spiral-Point Gun — Plug 83012 3 3.380 0.920 – 0.367 15 80
Spiral-Flute — Modifi ed Bottom 83026 3 3.380 0.570 – 0.367 15 80
Extended-Length
Spiral-Point Gun — Plug 83040 3 6.000 0.920 – 0.367 15 80
Spiral-Flute — Modifi ed Bottom 83051 3 6.000 0.920 – 0.367 15 80
9/16"
Spiral-Point Gun — Plug 83013 3 3.590 0.980 – 0.429 15 64
Spiral-Flute — Modifi ed Bottom 83027 3 3.590 0.630 – 0.429 15 64
5/8"
Spiral-Point Gun — Plug 83014 3 3.810 1.060 – 0.480 15 64
Spiral-Flute — Modifi ed Bottom 83028 3 3.810 0.690 – 0.480 15 64
11/16"
Spiral-Point Gun — Plug 84844 3 4.031 1.250 – 0.542 15 64
Spiral-Flute — Modifi ed Bottom 64843 3 4.031 0.610 – 0.542 15 64
3/4"
Spiral-Point Gun — Plug 83015 3 4.250 1.210 – 0.590 15 64
Spiral-Flute — Modifi ed Bottom 83029 4 4.250 0.760 – 0.590 15 64
max D pitch
style oxide fl utes L L3 L2 D limit min
Lightning Service Spiral-Point Gun — Plug 68488 2 2 1.750 0.440 – – 0.141 11 0.30
M2
M2.5
0.141
0.30
11
68438
0.500
1.810
Spiral-Point Gun — Plug
M3
Spiral-Point Gun — Plug
1.940
0.141
13
83070
0.620
0.30
0.190
Spiral-Flute — Modifi ed Bottom 83052 3 3 1.940 0.370 0.620 0.141 13 0.30
M3.5
Spiral-Point Gun — Plug 83053 3 2.000 0.390 0.810 0.141 13 0.30
Spiral-Flute — Modifi ed Bottom 83071 3 2.000 0.260 0.810 0.141 13 0.30
(continued)
Pricing Based on Order Quantity Five day lead time.
min max
1 1
2 2
3 5
6 8
9 11
12 23
24 47
48 72
W286 widia.com
