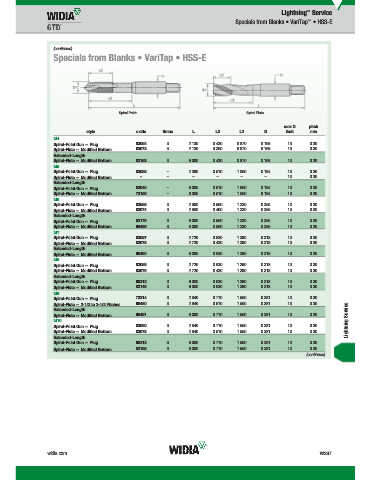

Page 1985 - Master Catalog 2017, Inch

P. 1985

Lightning Service
™
™
Specials from Blanks • VariTap • HSS-E

(continued)
Specials from Blanks • VariTap • HSS-E

Spiral Point Spiral Flute

max D pitch
style oxide ﬂ utes L L3 L2 D limit min
M4
Spiral-Point Gun — Plug 83054 3 2.130 0.430 0.870 0.168 13 0.30
Spiral-Flute — Modiﬁ ed Bottom 83072 3 2.130 0.260 0.870 0.168 13 0.30
Extended-Length
Spiral-Flute — Modiﬁ ed Bottom 83163 3 6.000 0.430 0.870 0.168 13 0.30
M5
Spiral-Point Gun — Plug 83055 – 2.380 0.510 1.060 0.194 13 0.30
Spiral-Flute — Modiﬁ ed Bottom – – – – – – 13 0.30
Extended-Length
Spiral-Point Gun — Plug 83040 – 6.000 0.510 1.060 0.194 13 0.30
Spiral-Flute — Modiﬁ ed Bottom 72159 – 6.000 0.510 1.060 0.194 13 0.30
M6
Spiral-Point Gun — Plug 83056 3 2.500 0.560 1.230 0.255 13 0.30
Spiral-Flute — Modiﬁ ed Bottom 83074 3 2.500 0.400 1.230 0.255 13 0.30
Extended-Length
Spiral-Point Gun — Plug 83179 3 6.000 0.560 1.230 0.255 13 0.30
Spiral-Flute — Modiﬁ ed Bottom 68489 3 6.000 0.560 1.230 0.255 13 0.30
M7
Spiral-Point Gun — Plug 83057 3 2.720 0.630 1.390 0.318 13 0.30
Spiral-Flute — Modiﬁ ed Bottom 83075 3 2.720 0.430 1.390 0.318 13 0.30
Extended-Length
Spiral-Flute — Modiﬁ ed Bottom 68490 3 6.000 0.630 1.390 0.318 13 0.30
M8
Spiral-Point Gun — Plug 83058 3 2.720 0.630 1.390 0.318 13 0.30
Spiral-Flute — Modiﬁ ed Bottom 83076 3 2.720 0.430 1.390 0.318 13 0.30
Extended-Length
Spiral-Point Gun — Plug 68312 3 6.000 0.630 1.390 0.318 13 0.30
Spiral-Flute — Modiﬁ ed Bottom 83149 3 6.000 0.630 1.390 0.318 13 0.30
M9
Spiral-Point Gun — Plug 72214 3 2.940 0.710 1.550 0.381 13 0.30
Spiral-Flute — 2-1/2 to 3-1/2 Pitches 68480 3 2.940 0.510 1.550 0.381 13 0.30
Extended-Length
Spiral-Flute — Modiﬁ ed Bottom 68491 3 6.000 0.710 1.550 0.381 13 0.30
M10 Lightning Service
Spiral-Point Gun — Plug 83060 3 2.940 0.710 1.550 0.381 13 0.30
Spiral-Flute — Modiﬁ ed Bottom 83078 3 2.940 0.510 1.550 0.381 13 0.30
Extended-Length
Spiral-Point Gun — Plug 68313 3 6.000 0.710 1.550 0.381 13 0.30
Spiral-Flute — Modiﬁ ed Bottom 83155 3 6.000 0.710 1.550 0.381 13 0.30
(continued)
