EOS 90455-A-PHY-0012-Covers assembly

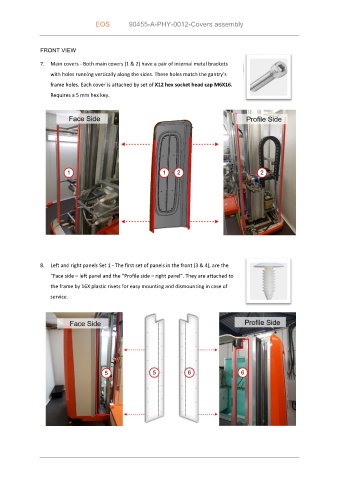

FRONT VIEW

7. Main covers - Both main covers (1 & 2) have a pair of internal metal brackets
with holes running vertically along the sides. These holes match the gantry’s

frame holes. Each cover is attached by set of X12 hex socket head cap M6X16.
Requires a 5 mm hex key.

8. Left and right panels Set 1 - The first set of panels in the front (3 & 4), are the

“Face side – left panel and the “Profile side – right panel”. They are attached to
the frame by 16X plastic rivets for easy mounting and dismounting in case of
service.
