EOS 90455-A-PHY-0012-Covers assembly

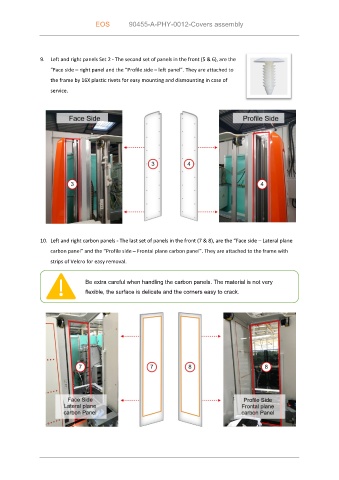

9. Left and right panels Set 2 - The second set of panels in the front (5 & 6), are the
“Face side – right panel and the “Profile side – left panel”. They are attached to

the frame by 16X plastic rivets for easy mounting and dismounting in case of
service.

10. Left and right carbon panels - The last set of panels in the front (7 & 8), are the “Face side – Lateral plane
carbon panel” and the “Profile side – Frontal plane carbon panel”. They are attached to the frame with
strips of Velcro for easy removal.

Be extra careful when handling the carbon panels. The material is not very
flexible, the surface is delicate and the corners easy to crack.
