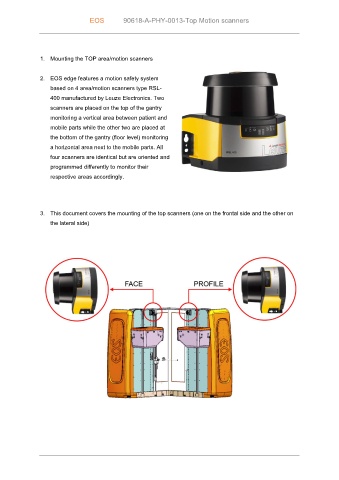

EOS 90618-A-PHY-0013-Top Motion scanners

1. Mounting the TOP area/motion scanners

2. EOS edge features a motion safety system
based on 4 area/motion scanners type RSL-

400 manufactured by Leuze Electronics. Two
scanners are placed on the top of the gantry
monitoring a vertical area between patient and
mobile parts while the other two are placed at
the bottom of the gantry (floor level) monitoring
a horizontal area next to the mobile parts. All

four scanners are identical but are oriented and
programmed differently to monitor their
respective areas accordingly.

3. This document covers the mounting of the top scanners (one on the frontal side and the other on
the lateral side)
