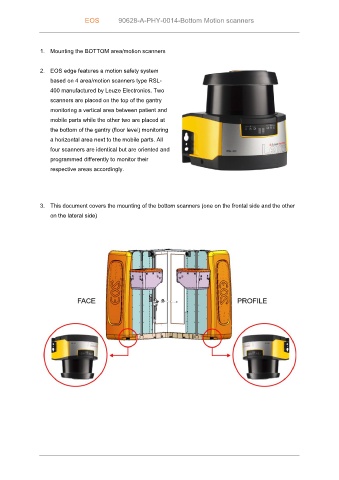

EOS 90628-A-PHY-0014-Bottom Motion scanners

1. Mounting the BOTTOM area/motion scanners

2. EOS edge features a motion safety system
based on 4 area/motion scanners type RSL-
400 manufactured by Leuze Electronics. Two
scanners are placed on the top of the gantry
monitoring a vertical area between patient and
mobile parts while the other two are placed at

the bottom of the gantry (floor level) monitoring
a horizontal area next to the mobile parts. All
four scanners are identical but are oriented and
programmed differently to monitor their
respective areas accordingly.

3. This document covers the mounting of the bottom scanners (one on the frontal side and the other
on the lateral side)
