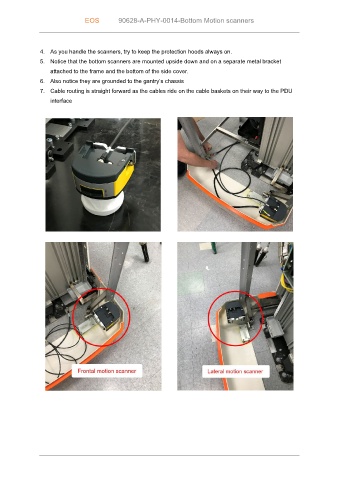

EOS 90628-A-PHY-0014-Bottom Motion scanners

4. As you handle the scanners, try to keep the protection hoods always on.

5. Notice that the bottom scanners are mounted upside down and on a separate metal bracket
attached to the frame and the bottom of the side cover.
6. Also notice they are grounded to the gantry’s chassis
7. Cable routing is straight forward as the cables ride on the cable baskets on their way to the PDU
interface
