EOS 90618-A-PHY-0013-Top Motion scanners

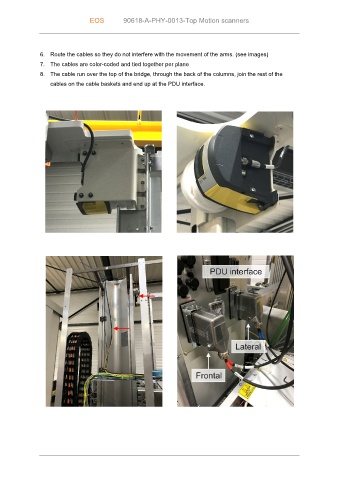

6. Route the cables so they do not interfere with the movement of the arms. (see images)
7. The cables are color-coded and tied together per plane
8. The cable run over the top of the bridge, through the back of the columns, join the rest of the

cables on the cable baskets and end up at the PDU interface.
