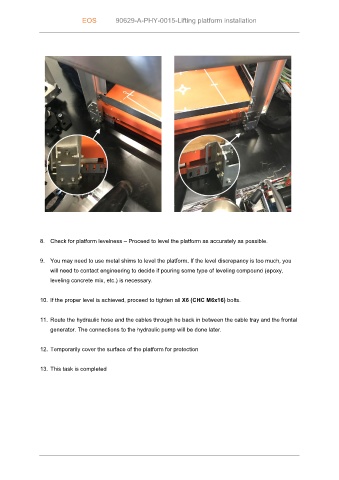

EOS 90629-A-PHY-0015-Lifting platform installation

8. Check for platform levelness – Proceed to level the platform as accurately as possible.

9. You may need to use metal shims to level the platform. If the level discrepancy is too much, you
will need to contact engineering to decide if pouring some type of leveling compound (epoxy,

leveling concrete mix, etc.) is necessary.

10. If the proper level is achieved, proceed to tighten all X6 (CHC M6x16) bolts.

11. Route the hydraulic hose and the cables through he back in between the cable tray and the frontal
generator. The connections to the hydraulic pump will be done later.

12. Temporarily cover the surface of the platform for protection

13. This task is completed
